Dgen Papyrus G5 / DCM*

*Double Cyan-Magenta System

Printer

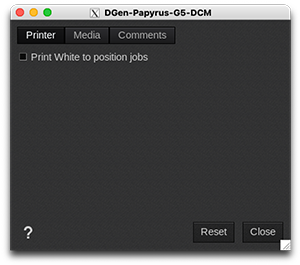

Print White to position jobs: By selecting this parameter, CalderaRIP will add a White ink area at the top edge and at the left edge of the job. This option will only work with a top-left alignment configured on the printer.

Warning. If the positioning is changed, adding white data on the top edge and at the left edge could damage the job (which is why the function is disabled by default).

Media

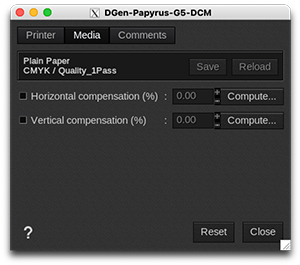

• Information: at the top of the window, you are able to see information about your media. There you have access to two actions:
  • Save: when you click on this button, the current media settings are saved to the selected media profile (printer, media, resolution, mode) so there will be applied for any new job using the same print configuration. If you don't save, the changes you made are only applied to the current job.
  • Reload: will revert back to default as set during profiling or the last saved changes.
• Horizontal compensation (%): we recommend not to modify this. Any deviation is likely to be mechanical on the printer's side.
• Vertical compensation (%): this can be useful if you detect an increase or decrease in the length due to heating or media tension which is common when printing on vinyl or textiles for example. To calculate the compensation, click Compute and follow the software’s instructions.

Comments

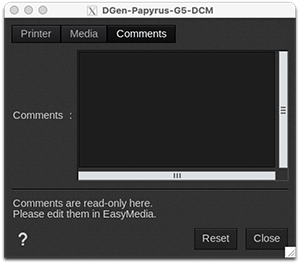

On this tab you can see comments coming from the EasyMedia module. It can include comments from the global media window and from the profile project window.
