Resolution

• Express
• Production
• Quality
• Quality-Matte
• Quality-Density
• Quality-Layered
• FineArt

Loading

The Canon Arizona 135 GT is a hybrid printer that can work in a flatbed or roll mode. The sizes might be:

• Roll 87
• Roll 64
• GT Table (max 126 x 251 cm for edge-to-edge printing)
• Custom

Custom loading with EasySelect

EasySelect is the capability for CalderaRIP to use the size and type of loaded media in the printer.

This printer supports 1 level of selection:

• CustomLoading: uses a custom size (sheet or roll) defined at last moment in the Print module interface.

Media

• Plain paper (default)

This driver comes with only a default media not calibrated.

Discover how to manage media with EasyMedia by clicking here.

Mode

• CMYK

Quality

• Uni-Dir* Forward
• Uni-Dir Reverse
• Bi-Dir**

*Uni-Dir : Unidirectional

**Bi-Dir : Bidirectional

Actions

Available actions are:

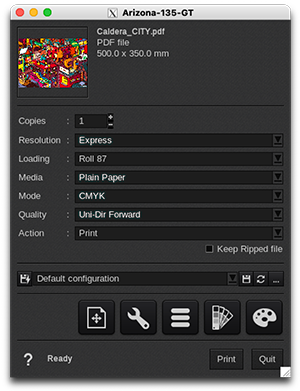

• Print: This action rips and prints the file simultaneously.
• RIP: Rips the file and holds it in the Spooler.
• RIP then Print: Rips the entire file, and then sends the file to print.
• Nest: This action nests all images sent to the printer and holds them in the Spooler.

Keep Ripped file (only available with "Print" and "Rip then Print" actions). When this box is checked, the sent file remains in the Spooler so you can reprint the job later on.
