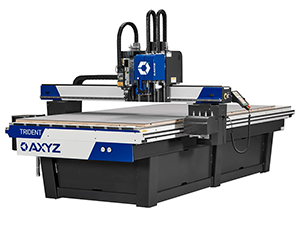

AXYZ cutters

Supported models

All AXYZ CNC routers.

Refer to AXYZ website.

Drivers

• AXYZ DXF

Driver history

• CalderaRIP V17.3
  • A new "Add direction mark" checkbox was added to the Misc. area of the Cutter Tools Configuration for almost all cutting drivers (both GrandCut and VisualCut). Activating this new field adds direction marks in the form of a triangle pointing to the bottom edge of the cut job, which significantly speeds up the operators' work when managing these files.

• CalderaRIP V12
  • AXYZ cutters supported

Installation

Type of license

	CutServer
	GrandCut B

AXYZ driver is a GrandCut driver:

• How to install a GrandCut cutter?
• How to configure a GrandCut cutter?

Format

AXYZ directly uses the G-Code format. CalderaRIP generates a DXF file that must be later converted to G-Code with third-party software like ArtiosCAD. Please refer to AXYZ recommendations.

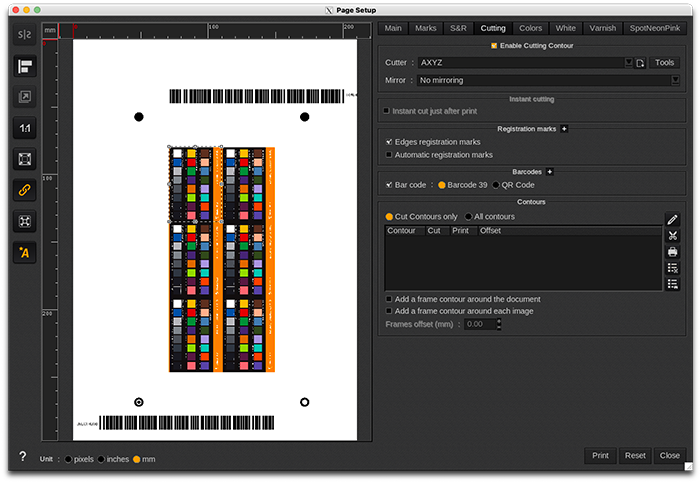

Marks

AXYZ marks are specific and not compatible with other cutters:

• The first mark to be detected is a target,
• The second one is a ring,
• All others are dots.

Associations

• No materials and methods association
• No materials and media association
• No methods and contours association

Cut contour names from your print file are directly included in the exported .DXF cut file.
