Resolution
After V16.2 / R2 printers
| Arizona 6160 XTS / XTHF | Arizona 6170 XTS / XTHF | |
| Express | ✔ | ✔ |
| High Key | ✔ | ✔ |
| Production | ✔ | ✔ |
| Production-Classic | ✔ | ✔ |
| Production-Classic-Matte | ✔ | ✔ |
| Production-Matte | ✔ | ✔ |
| Production-Plus | ✔ | ✔ |
| Production-Plus-Matte | ✔ | ✔ |
| Quality | ✔ | ✔ |
| Quality-Classic | ✔ | ✔ |
| Quality-Classic-Density | ✔ | ✔ |
| Quality-Classic-Layered | ✔ | |
| Quality-Classic-Matte | ✔ | ✔ |
| Quality-Classic-Smooth | ✔ | ✔ |
| Quality-Density | ✔ | |
| Quality-Matte | ✔ | |
| Quality-Plus | ✔ | ✔ |
| Quality-Plus-Density | ✔ | ✔ |
| Quality-Plus-Layered | ✔ | ✔ |
| Quality-Plus-Matte | ✔ | ✔ |
| Quality-Plus-Smooth | ✔ | ✔ |
| Quality-Smooth | ✔ | ✔ |
Before V16.2 / Printers with previous SDK
| Arizona 6160 XTS / XTHF | Arizona 6170 XTS / XTHF | |
| Express | ✔ | ✔ |
| Production | ✔ | ✔ |
| Production-Matte | ✔ | ✔ |
| Production-Plus | ✔ | ✔ |
| Quality | ✔ | ✔ |
| Quality-Matte | ✔ | ✔ |
| Quality-Density | ✔ | ✔ |
| Quality-Layered | ✔ | |
| Quality-Smooth | ✔ | ✔ |
| Quality-Plus | ✔ | ✔ |
| High-Key | ✔ | ✔ |
Loading
- FlatBed
- XTS: 2,510 x 3,090 mm for edge-to-edge printing (full bleed)
- XTHF: 2,510 x 3,210 mm for edge-to-edge printing (full bleed)
- Custom
Custom Loading with EasySelect
EasySelect is the capability for CalderaRIP to use the size and type of loaded media in the printer.
This printer supports 1 level of selection:

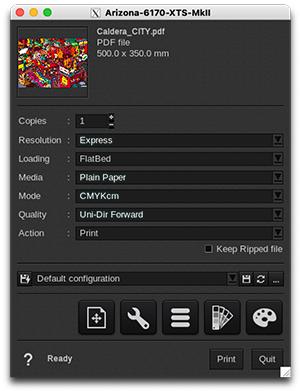

- CustomLoading: uses a custom size (sheet or roll) defined at last moment in the Print module interface.
Media
This driver comes with only a default media not calibrated.
Discover how to manage media with EasyMedia by clicking here.
Mode
- CMYK
- CMYKcm
Quality
- Uni-Dir Forward
- Uni-Dir Reverse
- Bi-Dir
Action
Available actions are:
- Print: This action rips and prints the file simultaneously.
- RIP: Rips the file and holds it in the Spooler.
- RIP then Print: Rips the entire file, and then sends the file to print.
- Nest: This action nests all images sent to the printer and holds them in the Spooler.
Keep Ripped file (only available with "Print" and "Rip then Print" actions). When this box is checked, the sent file remains in the Spooler so you can reprint the job later on.
