Supported models
| Mimaki CG-AR Series |
|||
|
|
CG-60AR (photo) |
CG-100AR |
CG-130AR |
|
Sheet size: |
90 - 740 mm (3.5 - 29.1") |
90 - 1,250 mm (3.5 - 49.2") |
90 - 1,550 mm (3.5 - 61.0") |
Drivers
- Mimaki CG-AR
Driver history
- CalderaRIP V16.1
- Mimaki CG-AR cutters supported since this version
Installation
Type of license
| CutServer | |
| GrandCut (A/B) |
Mimaki CG-AR series are VisualCut cutters:
Marks
Marks are specific to Mimaki and not compatible with other cutters:
Mimaki ID cut numbers are applicable from Page setup > Cutting tab, under the Barcodes area.
Features

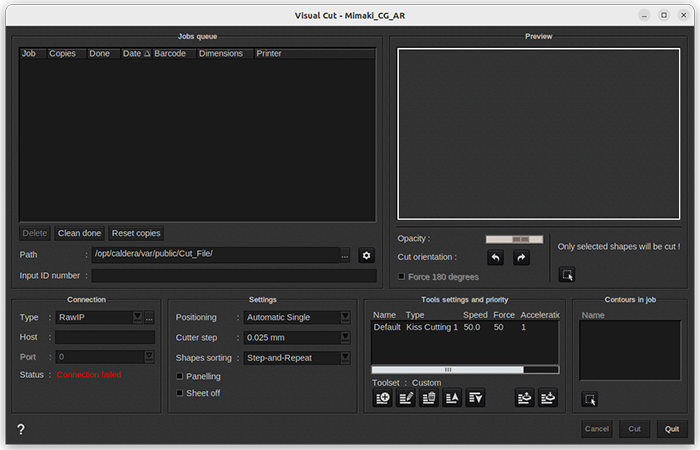

VisualCut
The following options are available in the VisualCut interface:
- Paneling
- Sheet off
For more information, please refer to this article.

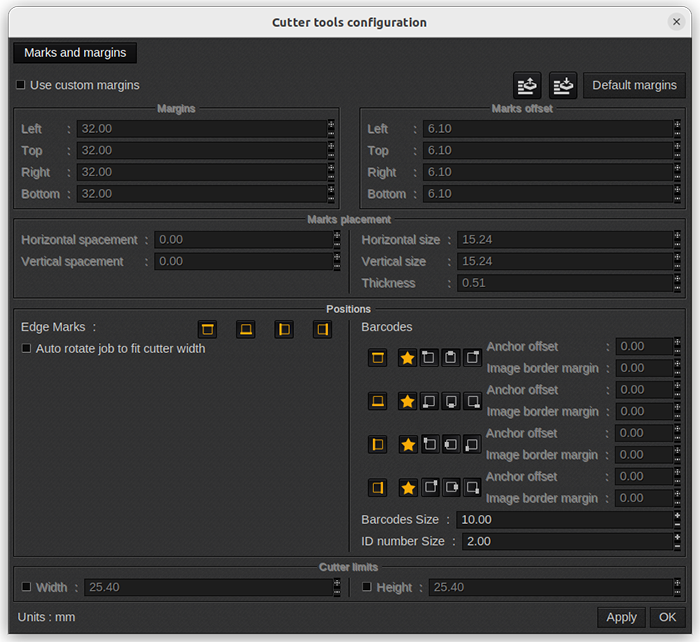

Cutter tools configuration
The Auto rotate job option is available from the Cutter tools configuration.
Associations
- No materials and methods association
- No materials and media association
- No methods and contours association
Connection
| USB | |
| File | |
| Network | |
| Serial |
