This article is an application case processed with PrimeCenter V2.4.
Related articles:
Metadata
To extract the media dimensions from the file name, use the following metadata:
- formatHeight
- formatWidth
You can also associate a name for this format with formatName.
Warning
Using this metadata does not allow you to select formats that are already configured in PrimeCenter. It allows you to create a temporary format with dimensions and optionally a name.
Defining a file name with FormatName does not retrieve the associated dimensions in PrimeCenter. Always use this metadata with formatHeight and formatWidth.
Dimensions must be written in millimeters in the file name.
Extract a sheet size
Objectives
- Extract the sheet size from the file name: 48 inches x 96 inches.
- Include a format name for easy identification.
Configuration

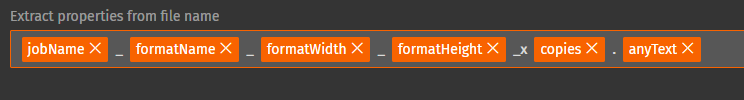

From the Input module, define a template for your file names in Extract properties from file name field.

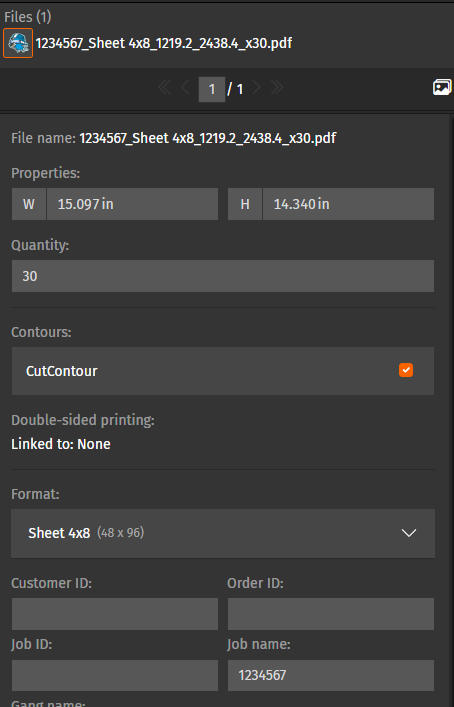

Example of file name: 1234567_Sheet 4x8_1219.2_2438.4_x30.pdf
The underscore is the separator so this translates to:
- JobName: 1234567
- formatName: Sheet 4x8 (4 ft x 8 ft = 48 in x 96 in)
- formatWidth: 1219.2 (this value is in millimeters and converts to 48 in)
- formatHeight: 2438.4 (this value is in millimeters and converts to 96 in)
- copies: 30
Extracted properties
Extraction of file name properties requires automatic import of files with an input folder and a running recipe. Extraction is not performed when a file is opened manually.
Layout name
From the Nesting module, define a template for the name of the generated layouts to include the format name.

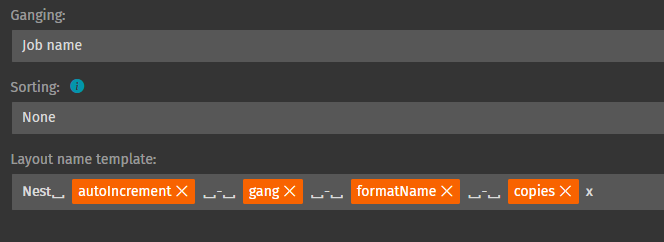

Layout name template: Nest_autoIncrement_-_gang_-_formatName_-_copiesx
The layouts will result in:

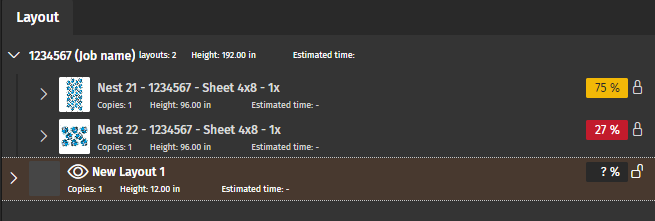

- Nest 21 - 1234567 - Sheet 4x8 - 1x
- Nest 22 - 1234567 - Sheet 4x8 - 1x
Print file
From the Print file options, define a template for the generated print files to include the format name.

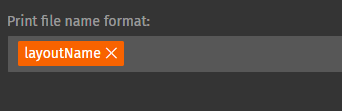

Print file name format: layoutName
The print file name is configured here to be exactly the same as the layout name, because the layout name already contains all the necessary information we want.
The print files result in:
Extract a roll size
Objectives
- Extract the roll size from the file name: 54 inches.
- Include a format name for easy identification.
Info
When using a roll size, define only one dimension and set the other to 0. But both parameters must be defined.
Configuration

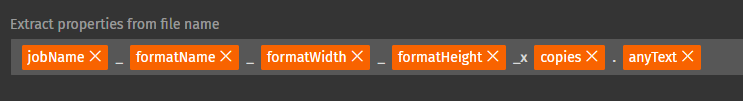

From the Input module, define a template for your file names in Extract properties from file name field.

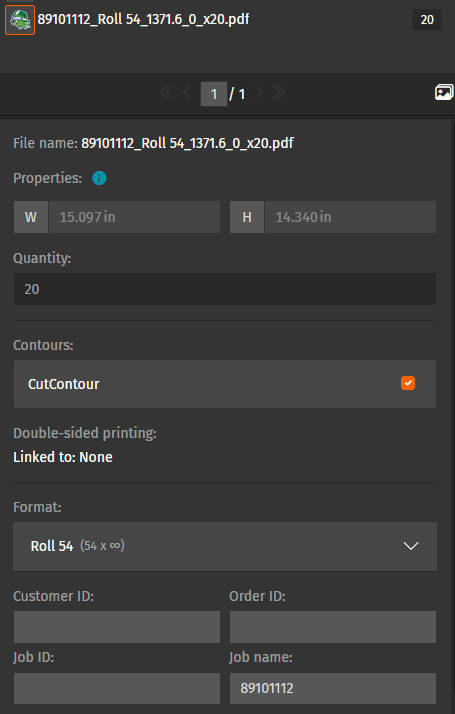

Example of file name: 89101112_Roll 54_1371.6_0_x20.pdf
The underscore is the separator so this translates to:
- JobName: 89101112
- formatName: Roll 54 (4 ft x 8 ft = 48 in x 96 in)
- formatWidth: 1371.6 (this value is in millimeters and converts to 54 in)
- formatHeight: 0 (no limit)
- copies: 20
Extracted properties
Extraction of file name properties requires automatic import of files with an input folder and a running recipe. Extraction is not performed when a file is opened manually.
Layout name
Same as for sheet size extraction, from the Nesting module, define a template for the name of the generated layouts to include the format name.
Layout name template: Nest_autoIncrement_-_gang_-_formatName_-_copiesx
The layouts will result in:
- Nest 25 - 89101112- Roll 54 - 1x
Print file
Same as for sheet size extraction, from the Print file options, define a template for the generated print files to include the format name.
Print file name format: layoutName
The print file name is configured here to be exactly the same as the layout name, because the layout name already contains all the necessary information we want.
The print files result in:
Attached files
Attached are the 2 example files and the recipe used. Change the input and output folders and modify as you like.
