The Impact i3 CEJ180X-TX (i3200) printers have partial support in CalderaRIP. To operate them, you must use a generic driver and make specific adjustments. This article outlines the necessary steps.
Download and install the driver
Follow the steps in this article. In step 1, search for the "GenericPRT2-Large" driver by selecting "Misc" as the manufacturer.
Connection
The printer driver generates a PRT file (printer file) that must be submitted using the software provided by the printer manufacturer, typically designed for Windows PCs.
You may be interested in reading: How to configure a printer using file sharing over the network? (File connection)
Resolutions
The driver requires the following resolutions to be added; any other resolutions can be removed:
360x1800-3Pass-3Drops
720x1200-4Pass-3Drops
720x1800-4Pass-3Drops
Loading
Any roll size exceeding 71.6 inches (1820 mm) should be removed. The maximum printable area is 70.8 inches (1800 mm).
You may be interested in reading: How to add a page or roll size to the printer driver?
Quality

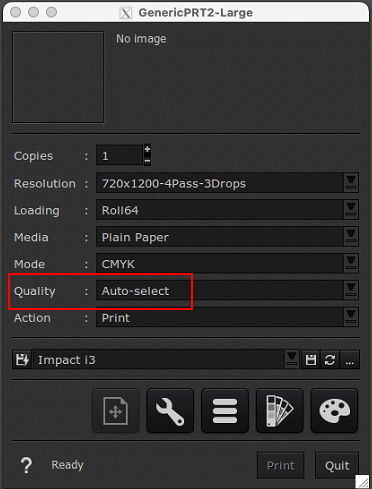

In the Print Module, set the Quality to Auto-select to ensure it uses the appropriate number of passes defined by the resolution:
Printer Settings

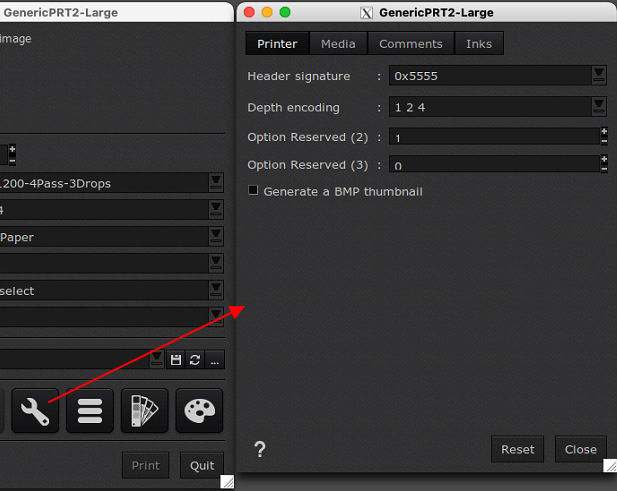

In the printer driver settings (wrench icon), the following specific settings for the ripped file header are required:

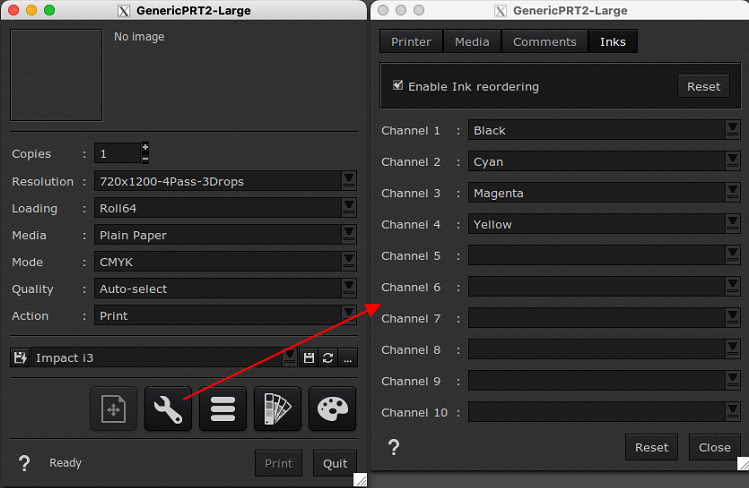

Also in Printer Settings, if you go to the Inks tab, you can customize the order of the inks according to your printer settings:
Good to know
Once the driver has been configured, it is recommended to use presets.
Color Calibration
For the initial test print, it is recommended to print a linearization target from EasyMedia to ensure the inks are printed in the correct order.

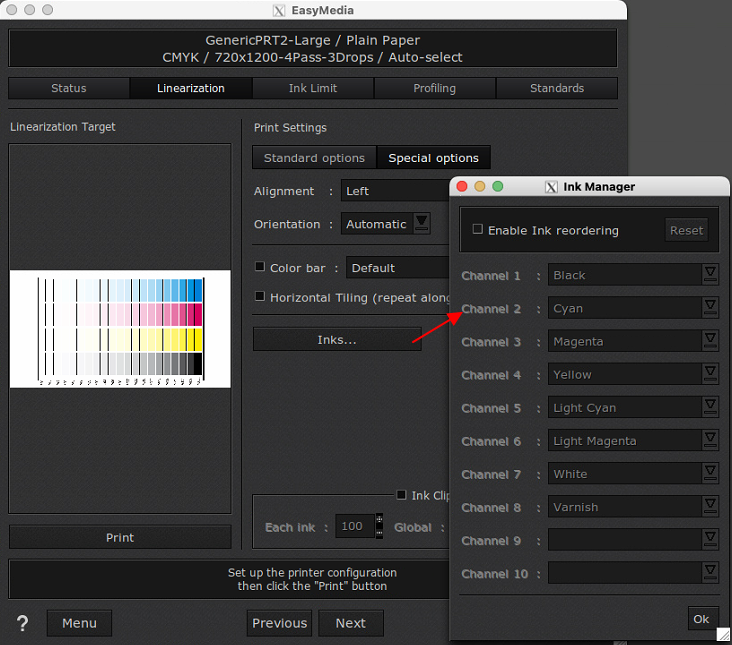

If the inks are out of order (not matching the linearization preview), you can adjust the ink order in EasyMedia under the Target Print Settings menu, in the Special Options > Inks section:
