Mimaki TS330-1600 - Print module interface

Updated March 11, 2025 15:12

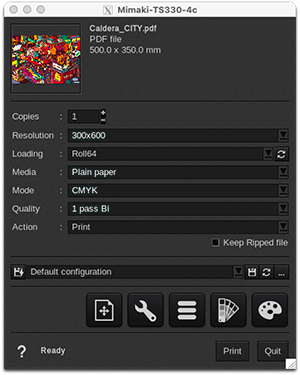

Mimaki-TS330-Print module.png

Resolution

4C Driver	NColor Driver
300x600 600x600 600x1200	600x600 600x900 600x1200

Loading

Roll64
Roll54
Roll36
Roll34
Roll30
Roll24
Roll22

Roll17
Roll12
Roll16
Roll14
Roll10
Custom (...)

EasySelect is the capability for CalderaRIP to use the size and type of loaded media in the printer.

This printer supports 2 levels of selection:

CustomLoading: uses a custom size (sheet or roll) defined at last moment in the Print module interface.
AutoLoading: uses the size of the media currently loaded in the printer.

Media

This driver comes with only a default media not calibrated.

Discover how to manage media with EasyMedia by clicking here.

Mode

4C Driver	NColor Driver
CMYK BMYK	СМYК СМYКcm CMYKcmk СМYКk CMYKRGB CMYKkRGB BMYK BMYKbm BMYKbmk	BMYKbm+Fluo 1 BMYKbm+Fluo 2 BMYKbm+FIuo 3 BMYKbm+Fluo Process BMYKbm+Fluo Spot BMYK+FIuo 1 BMYK+Fluo 2 BMYK+FIuo 3 BMYK+Fluo Process BMYK+Fluo Spot

Quality

4C Driver	NColor Driver
1 Pass Bi 1 Pass Uni 2 Pass Bi 2 Pass Uni	4 pass Bi High Speed 4 pass Uni High Speed 4 pass Bi 4 pass Uni	6 pass Bi High Speed 6 pass Uni High Speed 6 pass Bi 6 pass Uni	8 pass Bi High Speed 8 pass Uni High Speed 8 pass Bi 8 pass Uni

Action

Available actions are:

Print: This action rips and prints the file simultaneously.
RIP: Rips the file and holds it in the Spooler.
RIP then Print: Rips the entire file, and then sends the file to print.
Nest: This action nests all images sent to the printer and holds them in the Spooler.

Keep Ripped file (only available with "Print" and "Rip then Print" actions). When this box is checked, the sent file remains in the Spooler so you can reprint the job later on.
