Resolution
- 300x300
- 600x600
Loading
- These devices support multi-rolls (2 maximum) and sheets.
-
The 2, 4, and 6 in X600S or 5X6S indicate the maximal width:
- 2: 24"
- 4: 44"
- 6: 60"
Custom and Auto Loading with EasyMedia
EasySelect is the capability for CalderaRIP to use the size and type of loaded media in the printer.
This printer supports 2 levels of selection:
- CustomLoading: uses a custom size (sheet or roll) defined at last moment in the Print module interface.
- AutoLoading: uses the size of the media currently loaded in the printer.
Media
This driver comes with only a default media not calibrated.
Discover how to manage media with EasyMedia by clicking here.
Modes
- RGB
- CMYK8
Qualities
Info
The number of printing passes is chosen following the selected media and quality. When Auto is selected the printer chooses the recommended quality for the current selected paper type.
- Auto
- Draft
- Normal
- High
Directions

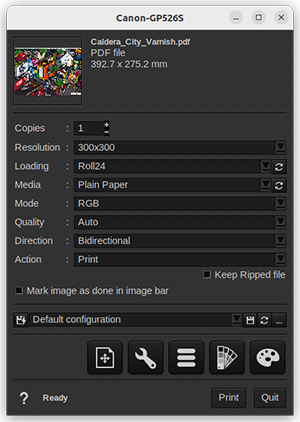

For any print, you can choose to use Unidirectional or Bidirectional printing directly in the Print module main interface.
Action
Available actions are:
- Print: This action rips and prints the file simultaneously.
- RIP: Rips the file and holds it in the Spooler.
- RIP then Print: Rips the entire file, and then sends the file to print.
- Nest: This action nests all images sent to the printer and holds them in the Spooler.
Keep Ripped file (only available with "Print" and "Rip then Print" actions). When this box is checked, the sent file remains in the Spooler so you can reprint the job later on.
