Resolution, printing modes, and qualities
Click here to expand
Loading
| SureColor SC-F9400 | SureColor SC-F9400H | |
|---|---|---|
| Maximum roll size | "64" | |
EasySelect
EasySelect is the capability for CalderaRIP to use the size and type of loaded media in the printer.
This printer supports 2 levels of selection:

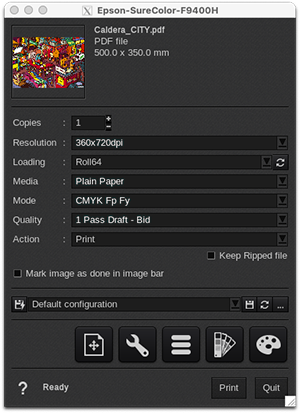

- CustomLoading: uses a custom size (sheet or roll) defined at last moment in the Print module interface.
- AutoLoading: uses the size of the media currently loaded in the printer.
Media
This driver comes with only a default media not calibrated.
Discover how to manage media with EasyMedia by clicking here.
Info

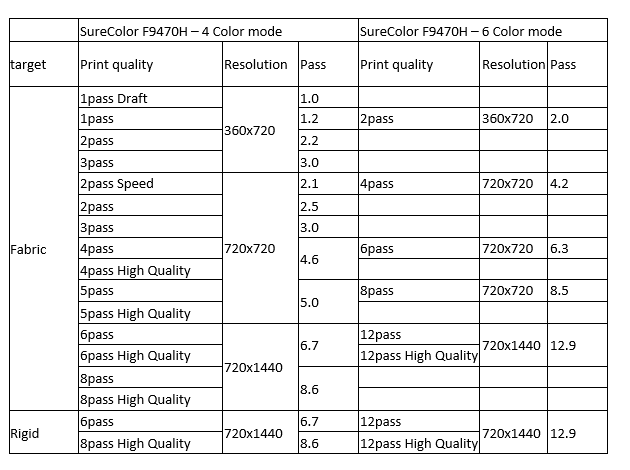

There are print modes that are not compatible with certain qualities and/or media. Among some of the recommendations and limitations:
- Fabric is accessible in faster modes
- Rigid is accessible in slower but higher qualities
See more details here.
Action
Available actions are:
- Print: This action rips and prints the file simultaneously.
- RIP: Rips the file and holds it in the Spooler.
- RIP then Print: Rips the entire file, and then sends the file to print.
- Nest: This action nests all images sent to the printer and holds them in the Spooler.
Keep Ripped file (only available with "Print" and "Rip then Print" actions). When this box is checked, the sent file remains in the Spooler so you can reprint the job later on.
