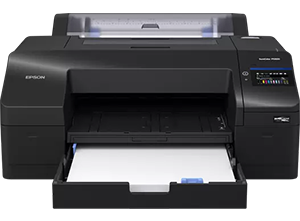

Supported model
- Large Format Printer for photography.
- Maximum printing size: up to 42×59.4 (A2).
- Up to 10-ink configuration.
Models concerned (with variations by region)
| Region | Machine |
| America | P5370 |
| Australia, New Zealand | P5360 |
| China and Hong Kong | P5380 |
| Europe | P5300 |
| Japan | P5350 |
| Korea | P5340 |
| South Asia, India, and Taiwan | P5330 |
Driver
- Epson-SureColor-P5300
Driver history
-
CalderaRIP V18:
- Epson SureColor P53X0 has been supported since this version.
Inks
Info
Printer driver(s) compatible with Custom Inksets. For more information, partners and resellers should consult the Partners Portal; end users can find details on our website.
| Cyan | Grey | ||
| Magenta | Light Grey | ||
| Yellow | Light Cyan | ||
| Photo Black | Light Magenta | ||
| Matte Black | Violet |
Modes
- EPSON Precision Dot RGB (RGB Contone)
- EPSON Precision Dot Advanced B&W (RGB Contone)
- EPSON Precision Dot B&W (Mono Contone)
Qualities
Click here to expand
| Mode | Resolution – Quality | Media compatibility |
| EPSON Precision Dot RGB | 720x360dpi - Speed |
|
| EPSON Precision Dot RGB | 720x720dpi - Speed |
|
| EPSON Precision Dot RGB | 720x720dpi - Standard |
|
| EPSON Precision Dot RGB | 720x720dpi - Quality |
|
| EPSON Precision Dot RGB | 1440x720dpi - Quality |
|
| EPSON Precision Dot RGB | 1440x1440dpi - Quality |
|
| EPSON Precision Dot RGB | 1440x1440dpi - High Quality |
|
| EPSON Precision Dot RGB | 2880x1440dpi - High Quality |
|
| EPSON Precision Dot RGB | 2880x1440dpi - Carbon Black |
|
| EPSON Precision Dot B&W | 720x360dpi - Speed |
|
| EPSON Precision Dot Advanced B&W | 1440x720dpi - Quality |
|
| EPSON Precision Dot Advanced B&W | 1440x1440dpi - Quality |
|
| EPSON Precision Dot Advanced B&W | 1440x1440dpi - High Quality |
|
| EPSON Precision Dot Advanced B&W | 2880x1440dpi - High Quality |
|
| EPSON Precision Dot Advanced B&W | 2880x1440dpi - Carbon Black |
|
| Media | Printing mode |
| Premium Luster Photo Paper (260) |
|
| Premium Glossy Photo Paper (250) |
|
| Premium Semigloss Photo Paper (250) |
|
| Premium Semimatte Photo Paper (260) |
|
| Premium Glossy Photo Paper (170) |
|
| Premium Semigloss Photo Paper (170) |
|
| Premium Glossy Photo Paper |
|
| Premium Semigloss Photo Paper |
|
| Premium Luster Photo Paper |
|
| Photo Paper Gloss 250 |
|
| Baryta |
|
| Epson Proofing Paper White Semimatte |
|
| Epson Proofing Paper Commercial |
|
| Velvet Fine Art Paper |
|
| Watercolor Paper - Radiant White |
|
| Epson UltraSmooth Fine Art Paper |
|
| Fine Art Matte |
|
| Washi |
|
| Doubleweight Matte Paper |
|
| Singleweight Matte Paper |
|
| Photo Quality Ink Jet Paper |
|
| Enhanced Matte Paper |
|
| Epson Archival Matte Paper |
|
| Canvas Matte |
|
| Canvas Satin |
|
| Plain Paper |
|
| Enhanced Synthetic Paper |
|
| Backlit (Generic) |
|
Media
Media parameters can only be configured using Epson Media Installer, which is available only on macOS and Windows and cannot be controlled directly by third-party software such as CalderaRIP.
Warning
Epson Edge Dashboard is also supported only on macOS and Windows, not on Linux. For details, see the dedicated article or contact Epson support.
To enable media synchronization, install both applications on a workstation connected to the same LAN and accessible from the Linux system running CalderaRIP.
Connection
Good to know
This driver supports SNMP versions 1 and 3, to be configured according to your printer settings on the ServerAdmin module.
| USB | |
| File | |
| Network | |
| Serial |
Possible error messages
- Borderless printing: The margins of the load must be correctly adjusted and, if it is a borderless print, do not forget to choose the option "Cut before and after printing".
-
Media width is incompatible with Borderless Printing. The media widths that are allowed in borderless printing are the following:
- 203.2mm or 8"
- 210mm
- 254mm or 10"
- 279.4mm or 11"
- 297mm
- 300mm
- 329mm
- 355.6mm or 14"
- 406.4mm or 16"
- 431.8 / 432mm or 17"
- Media is incompatible with this print mode (quality, mode, resolution): Indicates that the reference media in the selected Media tab is incompatible with the chosen print mode.
- Paper source is not available for this media: This indicates that using this type of media with the current paper load (paper source) is impossible.
- Paper source is set to Roll while media is defined as Sheet / Paper source is not of Roll type while media is defined as Roll: Alerts you to inconsistency between the Loading being of type Sheet and the paper source being set to Roll (and vice-versa).
- Media doesn't allow "Black enhance overcoat": As the message states, this media or print mode does not allow the Black enhance overcoat option.
