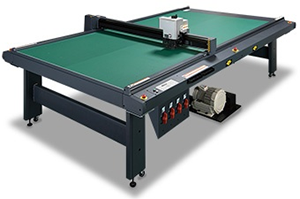

Supported models
- Flatbed cutting plotters.
- Cuts materials of up to 4x8ft (1,220 x 2,440mm).
- Each model in the series has a different cutting head, depending on the application:
- For industrial materials:
- CF22-1225T-S.
- CF22-1225TF-S.
- CF22-1225RT-S.
- For packaging and furniture:
- CF22-1225TD-S.
- CF22-1225RC-S.
- For industrial materials:
Drivers
Good to know
Each model in the series has a different cutting head, depending on its application. Please use the driver corresponding to your model, as each has a different set of preloaded cutting tools.
- Mimaki CF22T
- Mimaki CF22TF
- Mimaki CF22RT
- Mimaki CF22TD
- Mimaki CF22RC
Driver history
-
CalderaRIP V18:
- Correction of the file name/ID generation process, to avoid names with negative or incorrect values.
-
CalderaRIP V12.0:
- Cutters supported since this version
Installation
Info
In the past, different cutting devices required separate licenses: CutServer for roll-to-roll cutters, GrandCut (A or B) for flatbed cutters, and a cut option for trimmers. This resulted in different installation methods depending on the device.
Today, annual subscribers and perpetual license holders with CalderaCare can use any CalderaRIP‑supported cutting device without an additional license.
| Roll-to-Roll (Legacy CutServer) | |
| Flatbed (Legacy GrandCut A/B) |
You might be interested in reading:
Marks
Marks are specific to Mimaki and not compatible with other cutters:
Mimaki ID cut numbers are applicable from Page setup > Cutting tab, under the Barcodes area.
Features

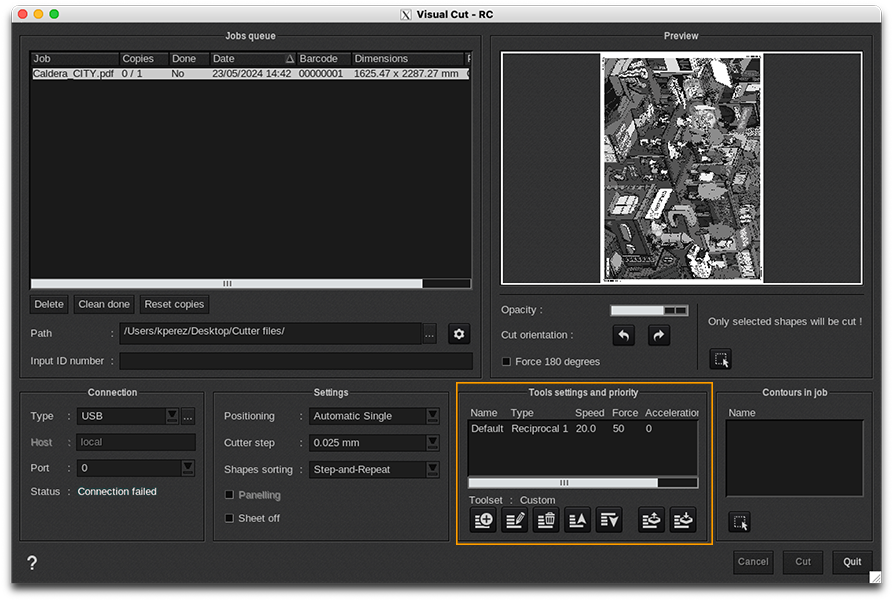

VisualCut Interface
These drivers include basic Settings in the VisualCut interface, except for Panelling.
As for the Tools settings and priority, each driver has a different set of preloaded cutting tools:
| Mimaki CF22T | Mimaki CF22TF | Mimaki CF22RT | Mimaki CF22TD | Mimaki CF22RC |
|
|
|
|
|
Info
Each driver presents changes in the limits of the tool parameters in VisualCut and the granularity of these parameters (some of them change 5 by 5 or 10 by 10). Although these changes are managed internally and are not reflected in the interface, we ask you to please use the driver that corresponds to your device.

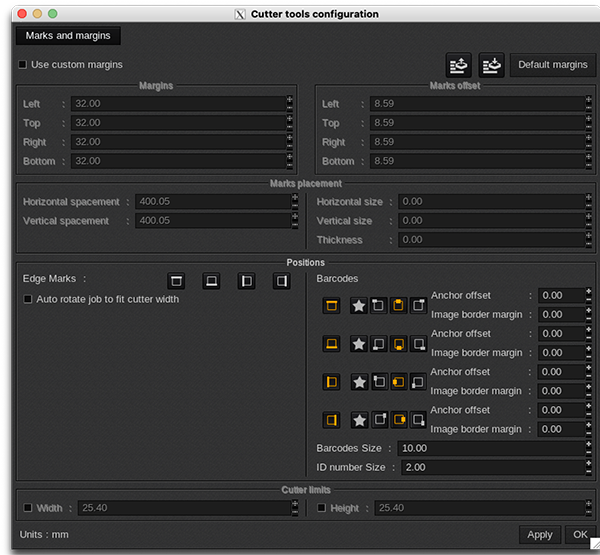

Cutter Tools Configuration
The Auto rotate job option is available from the Cutter Tools Configuration.
Associations
- No materials and methods association
- No materials and media association
- No methods and contours association
Connection
| USB | |
| File | |
| Network | |
| Serial |
