Supported models

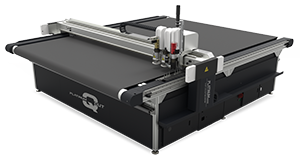

- Flatbed cutting plotters.
- Top features: High-precision CCD camera. Cutting speed can reach 1.5m/s.
- Models:
- PLATINUM Q CUT 3521. Cutting Area: 3500mmx3200mm
- PLATINUM Q CUT 2516. Cutting Area: 2500mm x 1600mm
Driver
- Liyu Platinum Q
Driver history
-
CalderaRIP V17.3.1:
- A new "Add direction mark" checkbox was added to the Misc. area of the Cutter Tools Configuration for this cutter driver. Activating this new field adds direction marks in the form of a triangle pointing to the bottom edge of the cut job, which significantly speeds up the operators' work when managing these files.
-
CalderaRIP V17.3:
- Cutters supported since this version
Installation
Info
In the past, different cutting devices required separate licenses: CutServer for roll-to-roll cutters, GrandCut (A or B) for flatbed cutters, and a cut option for trimmers. This resulted in different installation methods depending on the device.
Today, annual subscribers and perpetual license holders with CalderaCare can use any CalderaRIP‑supported cutting device without an additional license.
| Roll-to-Roll (Legacy CutServer) | |
| Flatbed (Legacy GrandCut A) |
You might be interested in reading:
Connection
| USB | |
| File | |
| Network | |
| Serial |
Format
- .XML
Marks

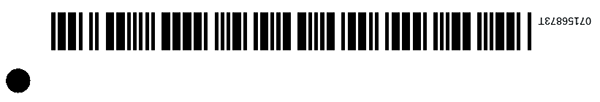

This driver generates round marks on the outer edges of the cut job. It can also generate standard barcodes.
Standard barcode numbers are applicable from Page setup > Cutting tab, under the Barcodes area.
Features

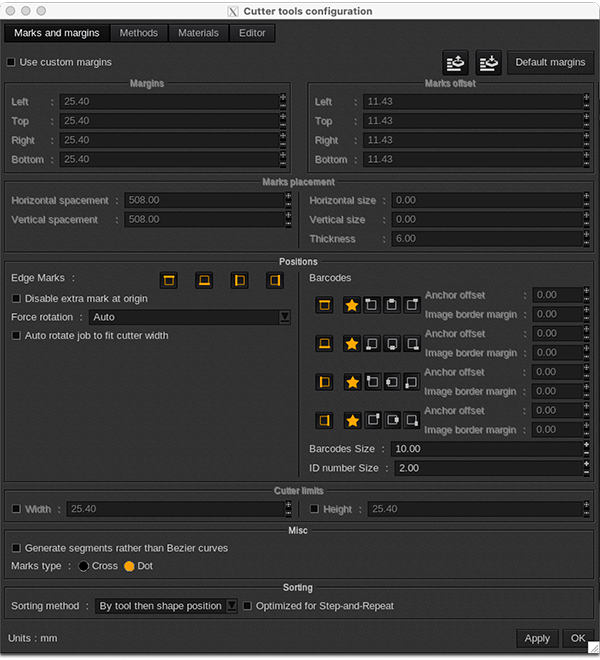

Cutter Tools Configuration
Info
Please refer to this article to have information about the standard features available in the Cutter Tools Configuration window.
Materials / Methods Association
This driver includes an Editor tab. Learn more about it with the following dedicated articles:
- How to automatically associate materials/methods with the GrandCut Editor?
- How to manually associate materials and methods between CalderaRIP and the controller? (If you have problems using the Editor tab, this article covers the overall manual process, regardless of driver)
