Supported models
This generic driver can be used for flatbed cutters compatible with .dxf files.
Driver
- Generic DXF Enhanced
Info
CalderaRIP now has two of these generic drivers:
- Generic DXF.
- Generic DXF Enhanced: Allows you to manage materials/methods and has some other additional functions.
Driver history
-
CalderaRIP V18:
- New driver developed for you to manage methods and materials.
Installation
Info
In the past, different cutting devices required separate licenses: CutServer for roll-to-roll cutters, GrandCut (A or B) for flatbed cutters, and a cut option for trimmers. This resulted in different installation methods depending on the device.
Today, annual subscribers and perpetual license holders with CalderaCare can use any CalderaRIP‑supported cutting device without an additional license.
| Roll-to-Roll (Legacy CutServer) | |
| Flatbed (Legacy GrandCut B) |
You might be interested in reading:
Format
Supports .dxf
Features
Info

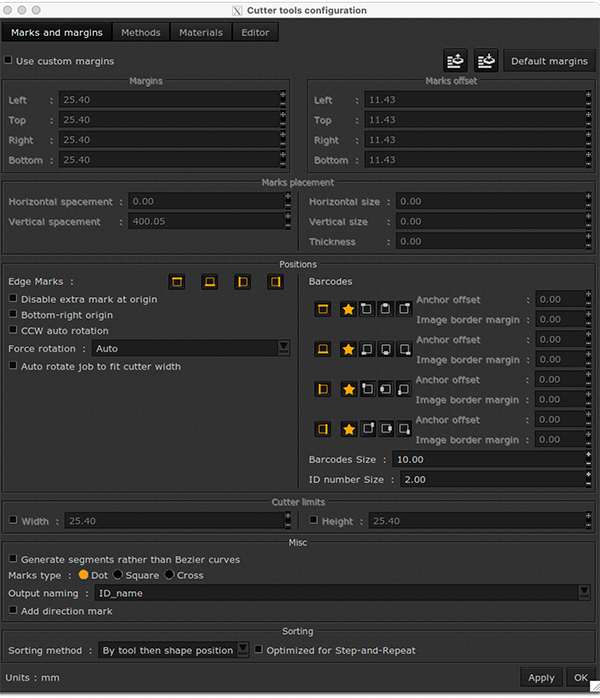

Please refer to this article to have information about the standard features available in the Cutter Tools Configuration window.
Specific features
Bottom-right origin: Origin will be placed at the bottom-right position instead of the bottom-left default position to suit your table's orientation
CCW auto rotation: Auto-rotation will go in a counter-clockwise direction, rather than clockwise
- Generate segments rather than Bezier curves: Depending on the type of cutter you have, if it doesn't support Bezier curves, you can generate segments instead.
-
Marks type:
- "Dot" (for usual calibration with a camera).
- "Square".
- "Cross" (for manual calibration).
- Output naming: Facilitate your job sorting by changing the format of output filenames.
Materials / Methods Association
This driver includes an Editor tab. Learn more about it with the following dedicated articles:
- How to automatically associate materials/methods with the GrandCut Editor?
- How to manually associate materials and methods between CalderaRIP and the controller? (If you have problems using the Editor tab, this article covers the overall manual process, regardless of driver)
Recommendations
If your production requires it, you may use third-party software to check measurements. Caldera recommends you use the open-source LibreCad.
