Supported models

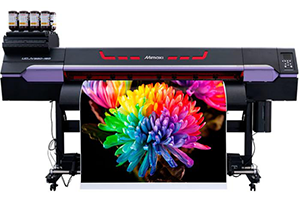

- UV-LED printer/cutter.
- Maximum print width:
- UCJV330-130: 53.5″ (1360 mm).
- UCJV330-160: 63.4″ (1610 mm).
- Visit the official website of Mimaki
Drivers
- Mimaki-UCJV330-4c
- Mimaki-UCJV330-with-special
- Mimaki CJV330 (VisualCut driver)
Driver history
-
CalderaRIP V18:
- Revision A:
- Fixed an issue that caused multilayer jobs to print distorted or stretched.
- Correction of the “error 3758620678 from convert library”, which could occur when using the 600x1200 resolution.
- Correction of a bug where the “-with-special” driver printed special inks in the wrong way (varnish gloss was printed as varnish matt, for example).
- Mimaki UCJV330-130 and 160 have been supported since this version.
- Revision A:
Inks
Info
It is necessary to use the driver that corresponds to the ink configuration you have in your printer. Any ink configuration changes should be cautiously performed to avoid printer malfunctions.
Consult Mimaki's support for more information.
| UCJV330-4C | UCJV330-With-Special | |
| ✔ | ✔ | |
| ✔ | ✔ | |
| ✔ | ✔ | |
| ✔ | ✔ | |
| ✔ | ||
| ✔ | ||
|
|
✔ | |
|
|
✔ |
The UCJV330-With-Special driver can use White and Clear as Spot Inks. Learn more.
Connection
| USB 2.0 | |
| File | |
| Network gigabit (RAWIP in ServerAdmin) |
|
| Serial |
You may be interested in reading: Best practices for the USB communication of Mimaki devices.
Possible error messages
"White ink can only be used with media type ..."
White ink is only allowed when using media PVC, PET, Paper, or Fabric, but not when media Tarpaulin is selected.
"Varnish ink can only be used with media type ..."
As for the White inks, media that can be used with clear ink are restricted to PVC, PET, or Paper media.
"Resolution ... cannot be used for Varnish printing"
The resolution 600x600 cannot be used with clear ink, please select another resolution.
"This layer configuration cannot be used with media Paper"
In addition to the previous limitation, when selecting Paper, one cannot use the following layer configuration that contains both Clear ink and White ink:
- Color-White-Clear
- Clear-White-Color
"Ink requested by mode is not available on printer"
This error usually happens when there is a communication error between the CalderaRIP and the printer, or when you have selected a mode containing inks that are not available on the printer (Light Cyan, Light Magenta), or you have enabled White separation, or Varnish separation and printer is missing those inks.
"You have selected a special ink to print, but no ink separation has been set up"
This error occurs when you have selected a layer configuration containing a special ink (e.g. White over Color) in the Printer Settings, but you didn't configure the ink output (ink separation) in the Page Setup (e.g. White tab). Please see the article: Printing with Special Inks.
