Epson SureColor S9100 - Overview

Supported model

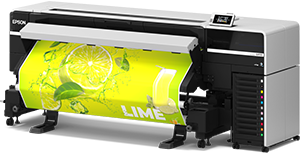

Epson SureColor S9100

• Large format (64") high-quality signage printer
• Roll-to-Roll
• Up to 11-color ink set including Red, Orange and Green

Models concerned (with variations by region)

Driver

• Epson-SureColor-S9100

Driver history

• CalderaRIP V19:
  • Revision B:
    • Resolved a crash that occurred when printing in EPSON Precision Dot mode with Color+ as the only layer.
    • Fixed an issue where disk space was not released after ripping multiple copies using the Legacy Multilayer Style.
  • Revision A:
    • Fixed an issue with 2L prints in the "Legacy" Multilayer Style (formerly "Venerable") that caused incorrect configurations of layers when using "Color+" with a quality that allows both White and Color on a single layer.

    • The "Venerable" option in the "Multilayer Style" menu under Printer Settings (  ) has been renamed to "Legacy".

        Info

      For new installations, the default setting is "Generic". However, if you update your software and have existing presets, it will default to "Legacy" to avoid production issues.

  • A new "Multilayer Style" menu has been added under Printer Settings (  ). You can now choose between the legacy multilayer method ("Venerable"), which displays the old multilayer options in the same window, and the new method ("Generic"), which does not show options in the Printer Settings. Instead, you must use the Multilayer Manager.
  • This version of the driver introduces support for CalderaRIP's Multilayer Manager and improves the loading of multilayer files prepared in PrimeCenter. Additionally, certain features incompatible with the multilayer manager have been disabled during file loading to minimize the risk of operational errors. Learn more.
• CalderaRIP V18.1:
  • Revision A: Fixed an issue in the driver where using the Step&Repeat feature resulted in only the first copy being printed, and caused banding when printing white.
• CalderaRIP V18:
  • Revision A: Internal technical updates.

  • Supported since this version.

      Warning

    The initial version of the driver contains a known incompatibility with the printer, which prevents USB functionality on Linux. We are actively working with Epson to resolve this.

Inks

You might be interested in: Epson SureColor S9100 - White and multilayers

Connection

	USB
	File
	Network
	Serial

SNMP Protocol

This driver automatically selects the required version of the protocol.

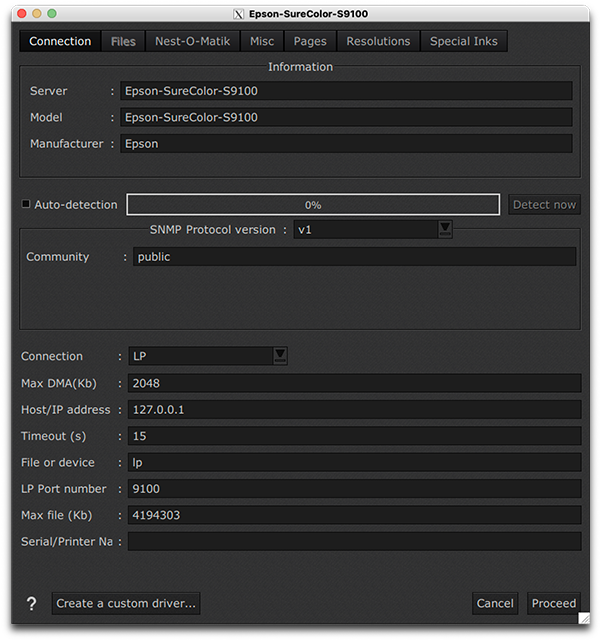

If needed, it is also possible to change the SNMP Protocol version manually (to version 1 or 3, according to your printer settings) thanks to a related field in the Connection tab of ServerAdmin:

Media synchronization

Also in ServerAdmin, the Serial/Printer name must be filled in with the printer's serial number to connect to the EPSON Edge Dashboard for media synchronization (which can be done subsequently in the EasyMedia module).

See the dedicated article for more information:

• Epson SureColor - AutoSync profiles with EED (Epson Edge Dashboard)

Possible error messages

• Media has invalid left or right margin:
  • Please change the margins in the print server settings, accessible in the ServerAdmin > Pages tab.
• Unavailable 3-layer printing functionality:
  • Only printers outside the Americas can access 3-layer printing functionality.
• Misconfiguration, layers, and quality don't match, layer(s) configuration incorrect:
  • Usually indicates that you've configured layers in the Printer tab that don't match the number of layers available with this quality.
• Misconfiguration, layers, and quality don't match, excessive layers for this quality:
  • Probably, a 3-layer configuration when this quality only allows 1 layer.
• Misconfiguration, layers, and quality don't match, and layer order is incompatible with this quality:
  • Incorrect layer order for this quality, try to interweave white and color.
• Quality doesn't allow White:
  • The selected quality does not allow the use of White.
• No layer configured for White data:
  • For some qualities, specify whether the White layer is above or below the Color layer, either Top or Bottom with White.
• No data for the White layer, please enable White separation:
  • This quality expects White ink, but there is no White data configured.
• This media material isn't available in this mode and configuration:
  • Printmode (resolution, quality) with EPSON Precision Dot mode is incompatible with the Material in the Media tab. Please choose a Resolution and Quality configuration compatible with this media type.
• Quality not supported with this mode (please use an EPSON Precision Dot mode):
  • Quality not compatible with Caldera's screening, please change to a compatible quality or use the EPSON Precision Dot mode.
