HP Latex R530 - Overview

Supported model

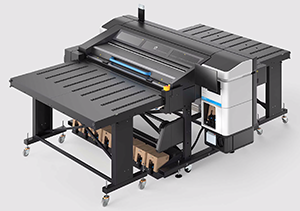

HP Latex R530

• Compact hybrid printer that adapts to rigid and flexible applications.
• 1.63 m / 64-in maximum media width.
• Up to 9 inks.
• Link to its dedicated website.

Driver

• HP-Latex-R530

Driver history

• CalderaRIP V18.1:
  • Hardware margins have been removed when centering the job. In the initial release of this driver, using the "Center job in the IPS" feature resulted in a slight misalignment of 5mm, due to added margins on the left and top of the print. This adjustment ensures accurate job placement.
• CalderaRIP V18:
  • Supported since this version.

Inks

This printer can use White as a Spot Ink and Sandwich mode. Learn more.

Connection

 Tips & tricks

Center job in the IPS

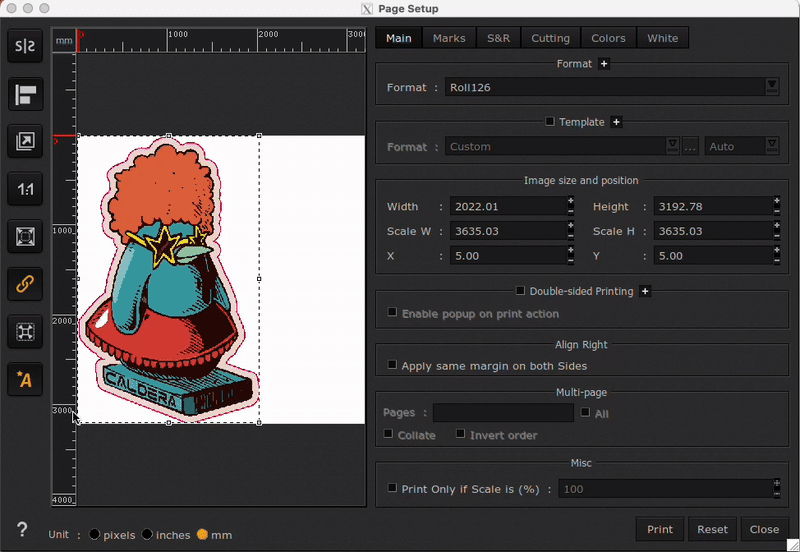

The HP Latex R530 can center the job regardless of the media size set in CalderaRIP, using the Center button located in the Print module > Page Setup:

Troubleshooting

• If you are an Ubuntu user experiencing issues with corrupted TIFF files, please refer to the dedicated article.

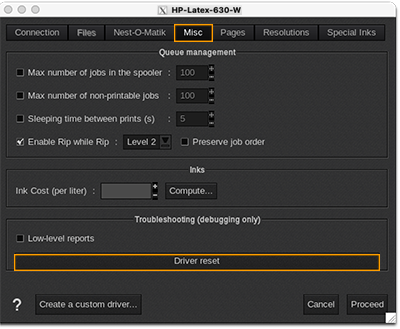

• Also, within the ServerAdmin module, there is a Misc tab where you will find options to fix unexpected behaviors with your HP Latex R530 devices:

Example from another HP model

• • Low-level report: This is the driver's log. If your driver presents unexpected behaviors, this feature is useful for identifying the problem.
    1. Check the corresponding box to enable it and restart the driver to validate the changes (the software will prompt you for this).
    2. Once the low-level reports are enabled, reproduce the issue.
    3. Save/Recover the report to check what's wrong with the driver.
  • Driver reset: This will remove any cache file kept internally by the driver to "reset" the driver to "factory default". Clicking this button will remove the internal media database, internal quality index, and the ICC cache file.
