Resolution
- 600
- 300
Loading
- Type: Roll
- Size (in inches): 126
EasySelect
EasySelect is the capability for CalderaRIP to use the size and type of loaded media in the printer.
This printer supports 1 level of selection:
- CustomLoading: uses a custom size (sheet or roll) defined at last moment in the Print module interface.
Media and Quality
This printer has a special profile installation procedure due to the printer's controller-embedded profiles. There is no preconfigured media and qualities. You need to go into EasyMedia to set up your media and qualities with the AutoSync feature.
Once you do the synchronization, you will be able to see the qualities defined by the IPS (Internal Print Server) both in EasyMedia and in the Print Module.
Further information:
Mode
- CMYK8 (CMYK Contone + W)
Action
The device supports only two actions:
- Print.
- Nest.
"Rip", "Rip then Print", and "Keep the ripped file" actions are disabled, as the "Print" action sends a RIP file to the controller-mounted directory. You can keep RIP files in the controller and manage to reprint them on the controller directly.

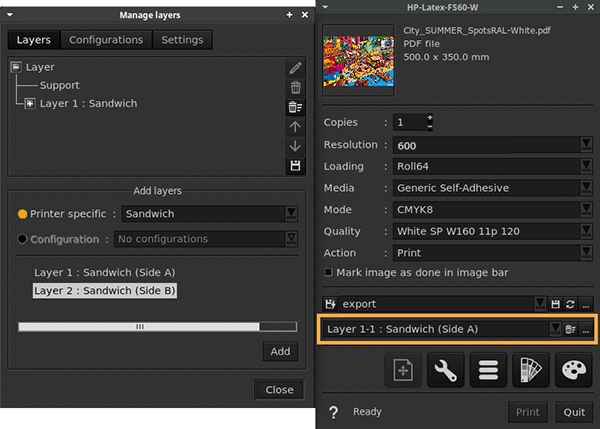

MultiLayer
You can print several layers by using the "sandwich" quality mode.
Example from another HP model
To go deeper:
Spot ink

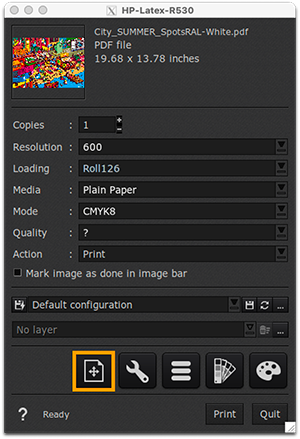

HP Latex R530 uses White ink. For this spot ink, there is a specific tab in the Page Setup window, to be able to configure it:
To have some details on these specific tabs, please refer to this article about Spot Inks.
