Resolutions, modes, and qualities
Good to know
"Double strike" refers to double density in these printers. Also, the image enhancement method can be overridden in Printer Settings.
| Resolution | Passes | Direction | Print Mode |
Image Enhancement Method |
InkSet | Recommended white density limit |
| Draft | 1 | Bi | Normal | None | CMYKcm+W | |
| Express | 2 | Bi | Quality | None | CMYKcm+W | |
| Production | 4 | Bi | Quality | None | CMYKcm+W | 75 |
| Standard | 8 | Bi | Quality | Fine Mask | CMYKcm+W | 95 |
| High Quality | 8 | Uni | Quality | Fine Mask | CMYKcm+W | 95 |
Loading
- Roll 3200mm
- Custom (...)
EasySelect is the capability for CalderaRIP to use the size and type of loaded media in the printer.
This printer supports 1 level of selection:

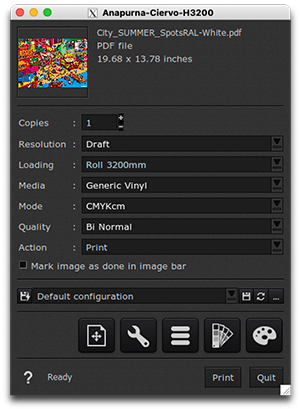

- CustomLoading: uses a custom size (sheet or roll) defined at last moment in the Print module interface.
Media
This driver comes with only a default media not calibrated.
Discover how to manage media with EasyMedia by clicking here.
Action
The device supports only two actions:
- Print.
- Nest.
"Rip", "Rip then Print", and "Keep the ripped file" actions are disabled, as the "Print" action sends a RIP file to the controller-mounted directory. You can keep RIP files in the controller and manage to reprint them on the controller directly.
