Resolutions and Qualities
| Resolution | Quality | Notes |
|---|---|---|
| 600x300 (Base Print) | 4 pass Uni | * |
| 600x600 | 8 pass Uni | ** |
| 10 pass Uni | ** | |
| 600x900 | 12 pass Uni | |
| 16 pass Uni | ||
| 600x1200 | 16 pass Uni | * |
| 20 pass Uni | * | |
| 1200x1200 | 16 pass Uni | |
| 20 pass Uni |
Info
*: Can only be used in single layer printing of Clear Coat or Primer ink.
**: When trying to use LD mode, only those modes can be used.
There is no bidirectional printing (hardware limitation).
Loading
EasySelect is the capability for CalderaRIP to use the size and type of loaded media in the printer.
This printer supports 2 levels of selection:

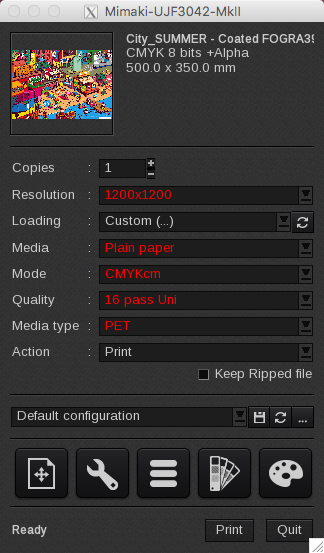

- CustomLoading: uses a custom size (sheet or roll) defined at last moment in the Print module interface.
- AutoLoading: uses the size of the media currently loaded in the printer.
Media
This driver comes with only a default media not calibrated.
Discover how to manage media with EasyMedia by clicking here.
Media Type
- PET
- Acrylic
- Lexan
- Leather
Modes
- CMYK
- CMYKcm
