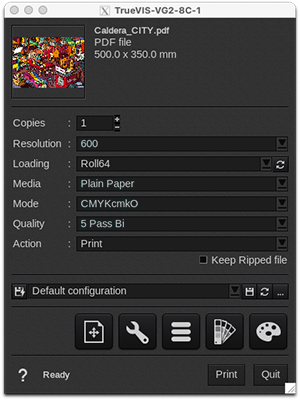

Roland TrueVIS VG2 - Print module interface

Updated January 15, 2026 13:42

Resolution and Quality

Resolution	Passes*	Scan Speed	Feed Speed
600x600	2	762	30
	3	762	30
	4	762	30
	5	1016	30
	6	1016	30
900x600	6	1016	30
	8 A	1016	16
	8 B	790	16
	8 C	1016	16
900x900	8	1016	16
	10 A	592	16
	10 B	1016	16
	10 C	592	16

* Bidirectional or Unidirectional

Resolution	Passes*	Scan Speed	Feed Speed
600x600	5	762	30
	6	762	30
	9	1016	16
900x600	9	1016	30
	10 A	1016	16
	10 B	1016	16
	10 C	790	16
	12 A	1016	16
	12 B	1016	16
	12 C	790	16
	12 (Colors -> white)	960	16
	12 (White -> colors)	960	16
	12 (White only)	960	16
	20 (Colors -> white)	847	16
	20 (White -> colors)	847	16
	20 (White only)	847	16
900x900	13 A	1016	16
	13 B	592	16
	13 C	592	16
	16 A	1016	16
	16 B	592	16
	16 C	592	16
	20 (Colors -> white)	847	16
	20 (White -> colors)	847	16
	20 (White only)	847	16

* Bidirectional or Unidirectional

Resolution	Passes*	Scan Speed	Feed Speed
600x600	5	762	30
	6	762	30
	9	1016	16
900x600	9	1016	16
	10 A	1016	16
	10 B	1016	16
	10 C	790	16
	12 A	1016	16
	12 B	1016	16
	12 C	790	16
900x900	13 A	1016	16
	13 B	592	16
	13 C	592	16
	16 A	1016	16
	16 B	592	16
	16 C	592	16

* Bidirectional or Unidirectional

Resolution	Passes*	Scan Speed	Feed Speed
600x600	5	762	30
	6	762	30
	9	1016	16
900x600	9	1016	16
	10 A	1016	16
	10 B	1016	16
	10 C	790	16
	12 A	1016	16
	12 B	1016	16
	12 C	790	16
900x900	13 A	1016	16
	13 B	592	16
	13 C	592	16
	16 A	1016	16
	16 B	592	16
	16 C	592	16

* Bidirectional or Unidirectional

Resolution	Passes*	Scan Speed	Feed Speed
600x600	5	762	30
	6	762	30
	9	1016	16
900x600	9	1016	16
	10 A	1016	16
	10 B	790	16
	10 C	1016	16
	12 A	1016	16
	12 B	790	16
	12 C	1016	16
	12 (Colors -> white)	960	16
	12 (White -> colors)	960	16
	14 (White only)	960	16
	20 (Colors -> white)	847	16
	20 (White -> colors)	847	16
	20 (White only)	847	16
900x900	13 A	1016	16
	13 B	592	16
	13 C	592	16
	16 A	1016	16
	16 B	592	16
	16 C	592	16
	20 (Colors -> white)	847	16
	20 (White -> colors)	847	16
	20 (White only)	847	16

* Bidirectional or Unidirectional

	TrueVIS VG2-540	TrueVIS VG2-640
Maximum roll size	53"	63"

EasySelect is the capability for CalderaRIP to use the size and type of loaded media in the printer.

This printer supports 2 levels of selection:

CustomLoading: uses a custom size (sheet or roll) defined at last moment in the Print module interface.
AutoLoading: uses the size of the media currently loaded in the printer.

	Roland-VG2-4C	Roland-VG2-7C	Roland-VG2-8C	Roland-VG2-CMYKkOG	Roland-VG2-CMYKkOGW
Gray	✔	✔	✔	✔	✔
CMYK	✔	✔	✔	✔	✔
CMYKk				✔	✔
CMYKcmk		✔	✔
CMYKO			✔
CMYKcmkO			✔
CMYKOG				✔	✔
CMYKkOG				✔	✔
