Resolution and Quality
Info
There are modes that allow for the combination of a single special ink layer (White, Matte Varnish, or Primer) either under or over CMYK. If you wish to combine two special inks, such as Primer (Matte Varnish) over White, you must execute this as two separate jobs.
Roland-VersaUV-LEF2-CMYKPRGLW-UV4
Passes (Bidirectional or Unidirectional)
| 360x360 | 720x720 | 1440x720 | |
|---|---|---|---|
| 2 | ✔ | ||
| 8 | ✔ | ✔ | |
| 10 | ✔ | ✔ | |
| 12 | ✔ | ✔ | |
| 16 | ✔ | ✔ | |
| 32 | ✔ |
Colors
| 360x360 | 720x720 | 1440x720 | |
|---|---|---|---|
| White | ✔ | ✔ | ✔ |
| CMYK -> white | ✔ | ✔ | |
| White -> CMYK | ✔ | ✔ | |
| MatteVarnish | ✔ | ✔ | |
| CMYK -> MatteVarnish | ✔ | ✔ | |
| MatteVarnish -> CMYK | ✔ | ✔ | |
| Primer | ✔ | ✔ | |
| Primer -> CMYK | ✔ | ✔ | |
| Matte | ✔ | ✔ | |
| Gloss | ✔ | ✔ |
Roland-VersaUV-LEF2-CMYKGLGLW-UV4
Passes (Bidirectional or Unidirectional)
| 360x360 | 720x720 | 1440x720 | |
|---|---|---|---|
| 2 | ✔ | ||
| 8 | ✔ | ||
| 10 | ✔ | ✔ | |
| 12 | ✔ | ✔ | |
| 16 | ✔ | ✔ | |
| 32 | ✔ |
Colors
| 360x360 | 720x720 | 1440x720 | |
|---|---|---|---|
| White | ✔ | ✔ | ✔ |
| CMYK -> white | ✔ | ✔ | |
| White -> CMYK | ✔ | ✔ | |
| MatteVarnish | ✔ | ✔ | |
| CMYK -> MatteVarnish | ✔ | ✔ | |
| MatteVarnish -> CMYK | ✔ | ✔ | |
| Matte | ✔ | ✔ | |
| MatteEmbossing | ✔ | ||
| Gloss | ✔ | ✔ | |
| GlossVarnish | ✔ |
Loading
| VersaUV LEF2-300/D | |
|---|---|
| Maximum roll size | 30" |
EasySelect is the capability for CalderaRIP to use the size and type of loaded media in the printer.
This printer supports 2 levels of selection:

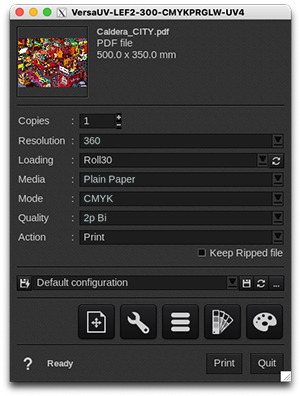

- CustomLoading: uses a custom size (sheet or roll) defined at last moment in the Print module interface.
- AutoLoading: uses the size of the media currently loaded in the printer.
Mode
| VersaUV-LEF2-CMYKPRGLW-UV4 | VersaUV-LEF2-CMYKGLGLW-UV4 | |
|---|---|---|
| Gray | ✔ | ✔ |
| CMYK | ✔ | ✔ |
