Resolution, Quality & Media
The Quality possibilities are linked to the Resolutions and Medias. Depending on the Resolution you choose, the list of the compatible Qualities and Medias will be automatically refreshed.
Fabric
| Resolution (dpi) | Quality / Nb of passes | HighSpeed availability |
|---|---|---|
| 360 x 900 | 6 / 8 / 10 / 12 | no |
| 360 x 1200 | 8 / 10 / 12 / 16 | no |
| 720 x 900 | 12 / 16 / 24 | yes |
Paper
| Resolution (dpi) | Quality / Nb of passes | HighSpeed availability |
|---|---|---|
| 360 x 900 | 6 / 8 / 10 / 12 Uni or Bi | no |
| 360 x 1200 | 8 / 10 / 12 / 16 Uni or Bi | no |
| 720 x 900 | 12 / 16 / 24 Uni or Bi | yes |
| 1200 x 1200 | 16 / 24 / 32 Uni or Bi | yes |
PET
| Resolution (dpi) | Quality / Nb of passes | HighSpeed availability |
|---|---|---|
| 360 x 1200 | 8 / 10 / 12 / 16 Uni or Bi | no |
| 720 x 900 | 12 / 16 / 24 Uni or Bi | yes |
| 1200 x 1200 | 16 / 24 / 32 Uni or Bi | yes |
PVC
| Resolution (dpi) | Quality / Nb of passes | HighSpeed availability |
|---|---|---|
| 360 x 1200 | 8 / 10 / 12 / 16 Uni or Bi | no |
| 720 x 900 | 12 / 16 / 24 Uni or Bi | yes |
| 1200 x 1200 | 16 / 24 / 32 Uni or Bi | yes |
Tarpaulin
| Resolution (dpi) | Quality (Nb of passes) | HighSpeed availability |
|---|---|---|
| 360 x 900 | 6 / 8 / 10 / 12 Uni or Bi | no |
| 360 x 1200 | 8 / 10 / 12 / 16 Uni or Bi | no |
| 720 x 900 | 12 / 16 / 24 Uni or Bi | yes |
Uni = Unidirectional Bi = Bidirectional
Loading
- Predefined roll width
- Custom
EasySelect
EasySelect is the capability for CalderaRIP to use the size and type of loaded media in the printer.
This printer supports 2 levels of selection:

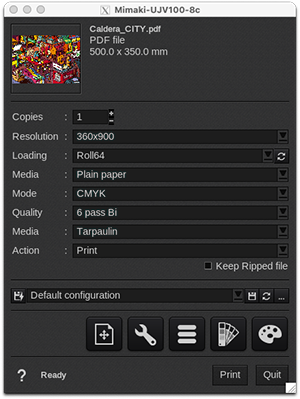

- CustomLoading: uses a custom size (sheet or roll) defined at last moment in the Print module interface.
- AutoLoading: uses the size of the media currently loaded in the printer.
Mode
- CMYK
