Resolution and Quality
Info
In the Quality column, the "P" refers to the number of passes, while the (A) and (B) values alter the pass mask, which determines how the edges of the passes are printed to reduce visible banding. Changing the quality may also impact printing speed.
| Resolution | Quality* |
|---|---|
| 600x600 | 4p (only in 540 model) |
| 6p (only in 540 model) | |
| 7p | |
| 8p | |
| 10p | |
| 12p | |
900x600 |
10p |
| 12p | |
| 16p | |
| 900x900 | 14p (A) |
| 14p (B) | |
| 16p (A) | |
| 16p (B) | |
| 20p (A) | |
| 20p (B) | |
| 1200x1200 | 20p (A) |
| 20p (B) |
* Unidirectional or Bidirectional Passes
Loading
| TrueVIS SG3-300 | TrueVIS SG3-540 | |
|---|---|---|
| Maximum roll size | 30" | 54" |
EasySelect is the capability for CalderaRIP to use the size and type of loaded media in the printer.
This printer supports 2 levels of selection:

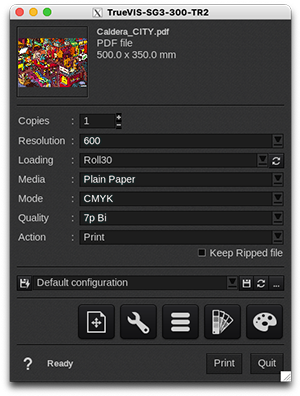

- CustomLoading: uses a custom size (sheet or roll) defined at last moment in the Print module interface.
- AutoLoading: uses the size of the media currently loaded in the printer.
Media
This driver comes with only a default media not calibrated.
Discover how to manage media with EasyMedia by clicking here.
Mode
- Gray
- CMYK
