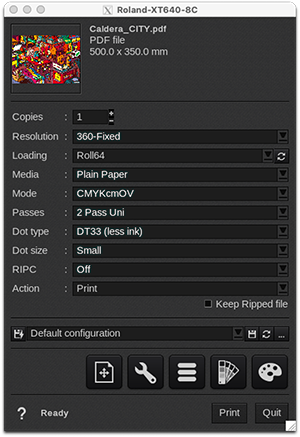

Roland Texart XT-640 - Print module interface

Updated


These drivers offer an advanced print mode selection with five distinct selectors: Resolution, Pass number & print direction, Dot type, Dot size, and Passmask pattern (RIPC, Roland Intelligent Pass Control). The appropriate print mode depends on the substrate and inks used, so it is your responsibility to determine the best print mode by testing various combinations of the selectors.

  Warning

Not all print modes are linearized or profiled by default, which means the initial output may not be optimal.



Resolution and Passes

  • "Fixed" in the resolution name refers to fixed-dot modes operating at 1 bit per pixel, while all other modes operate at 2 bits per pixel.
  • The passes can be either Unidirectional or Bidirectional.
  • Please note that PassMask Overlap may not be available, depending on whether the mode in question uses RIPC by default.



Roland-XT640-4C

Resolution

 Passes Scan Speed Feed Speed Passes/Line Passmask overlap

360-Fixed

 1 1016 150 1 N/A
1 (slower) 812 150 1 N/A

360

 1 812 150 1 N/A
2 1083 90 2 N/A
3 1083 60 2 115

540x360

 2 1083 90 2 N/A
3 1083 60 2 115
4 1083 60 2 172

720x360

 2 508 90 1 172

360x720



 2 1016 90 1 N/A
2 (slower) 812 90 1

N/A
3 1016 60 1 115
3 (slower) 812 60 1 115
4 1016 60 1 172
4 (slower) 812 60 1 172

540x720

 4 677 60 1 172
720-Fixed 8 1016 30 4 N/A
720 2 508 90 1 N/A
3 508 60 1 115
4 508 60 1 172
5 1016 60 2 69
6 1016 60 2 115
6 (slower) 812 60 2 115
8 1016 30 2 172
9 1016 30 4 38
720x1080 6 (slower) 508 60 1 172
6 1016 60 2 N/A
8 1016 30 2 86
9 1016 30 2 115
10 1016 30 2 138
12 1016 30 2 172
1440x720-Fixed 9 1016 30 4 38
720-1080-Fixed 6 (slower) 508 60 1 172
6 1016 60 2 N/A
1080-Fixed 9 1016 30 3 N/A
1080 9 677 30 2 115



720x1440

 9 1016 30 2 38
10 1016 30 2 69
12 1016 30 2 115
14 1016 30 2 148
16 1016 30 2 172
1080x1440-Fixed 12 677 30 2

115
1440-Fixed 16 508 30 2

172
16 (slower) 508 30 4

N/A



Roland-XT640-8C and Roland-XT640-CMYKOVFyFp

Resolution Passes Scan Speed Feed Speed Passes/Line Passmask overlap

360-Fixed

 2 1016 90 1 N/A
2 (slower) 812 90 1 N/A
360 2 812 90 1 N/A
4 1083 60 2 N/A
6 1083 60 2 115
540x360 4 1083 60 2 N/A
6 1083 60 2 115
8 1083 30 2 172

720x360

 4 508 60 1 172

360x720

 4 1016 60 1 N/A
4 (slower) 812 60 1 N/A
6 1016 60 1 115
6 (slower) 812 60 1 115
8 1016 30 1 172
8 (slower) 812 30 1

172
540x720 8 677 30 1 172
720-Fixed 16 1016 30 4 N/A
720 4 508 60 1 N/A
6 508 60 1 115
8 508 30 1 172
10 1016 30 2 69
12 1016 30 2 115
12 (slower) 812 30 2 115
16 1016 30 2 172
18 1016 30 4 38
720x1080 12 (slower) 508 30 1 172
12 1016 30 2 N/A
16 1016 30 2 86
18 1016 30 2 115
20 1016 30 2 138
24 1016 30 2 172
1440x720-Fixed 18 1016 30 4 38
720-1080-Fixed 12 (slower) 508 30 1 172
12 1016 30 2 N/A
1080-Fixed 18 1016 30 3 N/A
1080 18 677 30 2 115



720x1440

 18 1016 30 2 38
20 1016 30 2 69
24 1016 30 2 115
28 1016 30 2 148
32 1016 30 2 172
1080x1440-Fixed 24 677 30 2 115
1440-Fixed 32 508 30 2 172
32 (slower) 508 30 4

N/A



Loading

The Roland Texart XT-640 is a roll-fed printer that supports the following media sizes:

  • Roll64
  • Roll54
  • Roll44
  • Roll36
  • Roll24
  • A0
  • A1
  • A2
  • A3+
  • A3
  • A4
  • Custom

EasySelect is the capability for CalderaRIP to use the size and type of loaded media in the printer.

This printer supports 2 levels of selection:

  • CustomLoading: uses a custom size (sheet or roll) defined at last moment in the Print module interface.
  • AutoLoading: uses the size of the media currently loaded in the printer.



Mode

  XT640-4C XT640-8C XT640-CMYKOVFyFp
Gray ✔ ✔ ✔
CMYK ✔ ✔ ✔
CMYKcm   ✔
CMYKOV   ✔ ✔
CMYKcmOV   ✔



Action

Available actions are:

  • Print: This action rips and prints the file simultaneously.
  • RIP: Rips the file and holds it in the Spooler.
  • RIP then Print: Rips the entire file, and then sends the file to print.
  • Nest: This action nests all images sent to the printer and holds them in the Spooler.

Keep Ripped file (only available with "Print" and "Rip then Print" actions). When this box is checked, the sent file remains in the Spooler so you can reprint the job later on.
