Resolution and Quality
Info
In the Quality column, "P" refers to the number of passes, while the values (A) and (B) adjust the passmask, which determines how the edges of the passes are printed to minimize visible banding. Changing the Quality setting may also affect the printing speed.
Drivers CMYK-TE2 and CMYK-TR2
| Resolution | Quality* |
|---|---|
| 600x600 | 2p |
| 3p | |
| 4p | |
| 5p | |
| 6p | |
900x600 |
6p |
| 8p (A) | |
| 8p (B) | |
| 900x900 | 8p |
| 10p (A) | |
| 10p (B) | |
| 1200x1200 | 12 (A) |
| 12 (B) |
* Unidirectional or Bidirectional Passes
Drivers CMYKcmOG-TR2, CMYKcmkO-TE2, CMYKcmkO-TR2, CMYKkOG-TR2
| Resolution | Quality* |
|---|---|
| 600x600 | 5p |
| 6p | |
| 9p | |
| 900x600 | 9p |
| 10p (A) | |
| 10p (B) | |
| 12p (A) | |
| 12p (B) | |
| 900x900 | 13p (A) |
| 13p (B) | |
| 16p (A) | |
| 16p (B) | |
| 1200x1200 | 20p (A) |
| 20p (B) |
* Unidirectional or Bidirectional Passes
Drivers CMYKcmkW-TR2 and CMYKkOGW-TR2
| Resolution | Quality* |
|---|---|
| 600x600 | 5p |
| 6p | |
| 9p | |
| 900x600 | 9p |
| 10p (A) | |
| 10p (B) | |
| 12p (A) | |
| 12p (B) | |
| 12p (Colors -> White) | |
| 12p (White -> Colors) | |
| 14p (White only) | |
| 20p (Colors -> White) | |
| 20p (White -> Colors) | |
| 20p (White only) | |
| 900x900 | 13p (A) |
| 13p (B) | |
| 16p (A) | |
| 16p (B) | |
| 20p (Colors -> White) | |
| 20p (White -> Colors) | |
| 20p (White only) | |
| 1200x1200 | 20p (A) |
| 20p (B) |
* Unidirectional or Bidirectional Passes
Loading
| TrueVIS VG3-540 | TrueVIS VG3-640 | |
|---|---|---|
| Maximum roll size | 54" | 64" |
EasySelect is the capability for CalderaRIP to use the size and type of loaded media in the printer.
This printer supports 2 levels of selection:

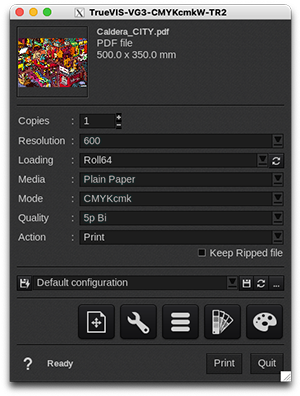

- CustomLoading: uses a custom size (sheet or roll) defined at last moment in the Print module interface.
- AutoLoading: uses the size of the media currently loaded in the printer.
Media
This driver comes with only a default media not calibrated.
Discover how to manage media with EasyMedia by clicking here.
Mode
| CMYK-TE2/TR2 | CMYKcmOG-TR2 |
CMYKcmkO-TE2 /CMYKcmkO-TR2 |
CMYKcmkW-TR2 |
CMYKkOG-TR2 /CMYKkOGW-TR2 |
|
| Gray | ✔ | ✔ | ✔ | ✔ | ✔ |
| CMYK | ✔ | ✔ | ✔ | ✔ | ✔ |
| CMYKcm | ✔ | ||||
| CMYKcmk | ✔ | ✔ | |||
| CMYKcmkO | ✔ | ||||
| CMYKcmOG | ✔ | ||||
| CMYKk | ✔ | ||||
| CMYKO | ✔ | ||||
| CMYKOG | ✔ | ✔ | |||
| CMYKkOG | ✔ |
