Resolution, media, mode, and quality
Qualities
| Mode | Resolution - Quality | Media type compatibility |
| EPSON Precision Dot CMYK | 300x600dpi - 1 Pass | Banner |
| EPSON Precision Dot CMYK | 600x600dpi - 2 Pass |
Adhesive Vinyl Banner Canvas Textile Paper/Others |
| EPSON Precision Dot CMYK | 600x600dpi - 3 Pass |
Adhesive Vinyl Banner Canvas Textile Paper/Others |
| EPSON Precision Dot CMYK | 600x600dpi - 4 Pass |
Adhesive Vinyl Banner Canvas Textile Paper/Others |
| EPSON Precision Dot CMYK | 600x600dpi - 4 Pass HQ |
Adhesive Vinyl Banner Canvas Textile Paper/Others |
| EPSON Precision Dot CMYK | 600x1200dpi - 6 Pass |
Adhesive Vinyl Banner Canvas Textile Paper/Others |
| EPSON Precision Dot CMYK | 600x1200dpi - 6 Pass HQ |
Adhesive Vinyl Banner Canvas Textile Paper/Others |
| EPSON Precision Dot CMYK | 600x1200dpi - 8 Pass |
Adhesive Vinyl Banner Canvas Textile Paper/Others |
| EPSON Precision Dot CMYK | 600x1200dpi - 8 Pass HQ |
Adhesive Vinyl Banner Canvas Textile Paper/Others |
| EPSON Precision Dot CMYK | 1200x1200dpi - 12 Pass |
Adhesive Vinyl Film (Backlit) Film (Frontlit) Canvas Textile Paper/Others |
| EPSON Precision Dot CMYK | 1200x1200dpi - 16 Pass |
Adhesive Vinyl Film (Backlit) Film (Frontlit) Canvas Textile Paper/Others |
| EPSON Precision Dot CMYK | 1200x1200dpi - 24 Pass |
Film (Backlit) Film (Frontlit) |
Print mode available by media type
| Media type | Print mode |
| Adhesive Vinyl |
600x600dpi - EPSON Precision Dot CMYK - 2 Pass 600x600dpi - EPSON Precision Dot CMYK - 3 Pass 600x600dpi - EPSON Precision Dot CMYK - 4 Pass 600x600dpi - EPSON Precision Dot CMYK - 4 Pass HQ 600x1200dpi - EPSON Precision Dot CMYK - 6 Pass 600x1200dpi - EPSON Precision Dot CMYK - 6 Pass HQ 600x1200dpi - EPSON Precision Dot CMYK - 8 Pass 600x1200dpi - EPSON Precision Dot CMYK - 8 Pass HQ 1200x1200dpi - EPSON Precision Dot CMYK - 12 Pass 1200x1200dpi - EPSON Precision Dot CMYK - 16 Pass |
| Banner |
300x600dpi - EPSON Precision Dot CMYK - 1 Pass 600x600dpi - EPSON Precision Dot CMYK - 2 Pass 600x600dpi - EPSON Precision Dot CMYK - 3 Pass 600x600dpi - EPSON Precision Dot CMYK - 4 Pass 600x600dpi - EPSON Precision Dot CMYK - 4 Pass HQ 600x1200dpi - EPSON Precision Dot CMYK - 6 Pass 600x1200dpi - EPSON Precision Dot CMYK - 6 Pass HQ 600x1200dpi - EPSON Precision Dot CMYK - 8 Pass 600x1200dpi - EPSON Precision Dot CMYK - 8 Pass HQ |
| Film (Backlit) |
1200x1200dpi - EPSON Precision Dot CMYK - 12 Pass 1200x1200dpi - EPSON Precision Dot CMYK - 16 Pass 1200x1200dpi - EPSON Precision Dot CMYK - 24 Pass |
| Film (Frontlit) |
1200x1200dpi - EPSON Precision Dot CMYK - 12 Pass 1200x1200dpi - EPSON Precision Dot CMYK - 16 Pass 1200x1200dpi - EPSON Precision Dot CMYK - 24 Pass |
| Canvas |
600x600dpi - EPSON Precision Dot CMYK - 2 Pass 600x600dpi - EPSON Precision Dot CMYK - 3 Pass 600x600dpi - EPSON Precision Dot CMYK - 4 Pass 600x600dpi - EPSON Precision Dot CMYK - 4 Pass HQ 600x1200dpi - EPSON Precision Dot CMYK - 6 Pass 600x1200dpi - EPSON Precision Dot CMYK - 6 Pass HQ 600x1200dpi - EPSON Precision Dot CMYK - 8 Pass 600x1200dpi - EPSON Precision Dot CMYK - 8 Pass HQ 1200x1200dpi - EPSON Precision Dot CMYK - 12 Pass 1200x1200dpi - EPSON Precision Dot CMYK - 16 Pass |
| Textile |
600x600dpi - EPSON Precision Dot CMYK - 2 Pass 600x600dpi - EPSON Precision Dot CMYK - 3 Pass 600x600dpi - EPSON Precision Dot CMYK - 4 Pass 600x600dpi - EPSON Precision Dot CMYK - 4 Pass HQ 600x1200dpi - EPSON Precision Dot CMYK - 6 Pass 600x1200dpi - EPSON Precision Dot CMYK - 6 Pass HQ 600x1200dpi - EPSON Precision Dot CMYK - 8 Pass 600x1200dpi - EPSON Precision Dot CMYK - 8 Pass HQ 1200x1200dpi - EPSON Precision Dot CMYK - 12 Pass 1200x1200dpi - EPSON Precision Dot CMYK - 16 Pass |
| Paper/Others |
600x600dpi - EPSON Precision Dot CMYK - 2 Pass 600x600dpi - EPSON Precision Dot CMYK - 3 Pass 600x600dpi - EPSON Precision Dot CMYK - 4 Pass 600x600dpi - EPSON Precision Dot CMYK - 4 Pass HQ 600x1200dpi - EPSON Precision Dot CMYK - 6 Pass 600x1200dpi - EPSON Precision Dot CMYK - 6 Pass HQ 600x1200dpi - EPSON Precision Dot CMYK - 8 Pass 600x1200dpi - EPSON Precision Dot CMYK - 8 Pass HQ 1200x1200dpi - EPSON Precision Dot CMYK - 12 Pass 1200x1200dpi - EPSON Precision Dot CMYK - 16 Pass |
Loading
- Maximum roll size: 64"
Custom loading with EasySelect
EasySelect is the capability for CalderaRIP to use the size and type of loaded media in the printer.
This printer supports 2 levels of selection:
- CustomLoading: uses a custom size (sheet or roll) defined at last moment in the Print module interface.
- AutoLoading: uses the size of the media currently loaded in the printer.
Media
Info
This driver comes with only a default media not calibrated. You can:
- Create media from scratch and/or import EMX files at the EasyMedia module
- Synchronize media from Epson Edge Dashboard
Media synchronization
To synchronize media from the EPSON Edge Dashboard, you need to enter the serial number of the printer in CalderaRIP.

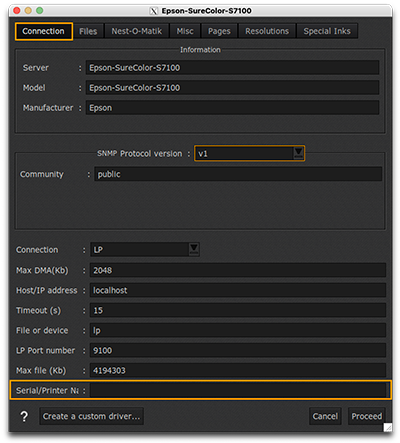

Go to ServerAdmin, select your printer, and click Configure. Then, access the Connection tab. Here, fill in the Serial/Printer Name field with the serial number of your printer:
Once the previous process is done, you will be able to synchronize media in EasyMedia. For more information:
Action
Available actions are:
- Print: This action rips and prints the file simultaneously.
- RIP: Rips the file and holds it in the Spooler.
- RIP then Print: Rips the entire file, and then sends the file to print.
- Nest: This action nests all images sent to the printer and holds them in the Spooler.
Keep Ripped file (only available with "Print" and "Rip then Print" actions). When this box is checked, the sent file remains in the Spooler so you can reprint the job later on.
