Resolution, Media, Mode, and Quality
Qualities
Info
No restrictions when using Caldera screening, but please refer to compatibility with EPSON Precision Dot for quality prints.
| Mode | Resolution - Quality | Media type compatibility |
| EPSON Precision Dot CMYK | 300x600dpi - 1.1 Pass |
Thin paper - Fabric Thick paper - Fabric |
| EPSON Precision Dot CMYK | 300x600dpi - 1.5 Pass |
Thin paper - Fabric Thick paper - Fabric |
| EPSON Precision Dot CMYK | 300x600dpi - 2.2 Pass |
Thin paper - Fabric Thick paper - Fabric |
| EPSON Precision Dot CMYK | 600x600dpi - 2.2 Pass |
Thin paper - Fabric Thick paper - Fabric |
| EPSON Precision Dot CMYK | 600x600dpi - 2.7 Pass |
Thin paper - Fabric Thick paper - Fabric |
| EPSON Precision Dot CMYK | 600x600dpi - 4.4 Pass |
Thin paper - Fabric Thick paper - Fabric |
| EPSON Precision Dot CMYK | 600x600dpi - 4.4 Pass HD |
Thin paper - Fabric Thick paper - Fabric |
| EPSON Precision Dot CMYK | 600x1200dpi - 7.0 Pass |
Thick paper - Fabric Thick paper - Rigid |
| EPSON Precision Dot CMYK | 600x1200dpi - 7.0 Pass HD | Thick paper - Fabric |
| EPSON Precision Dot CMYK | 600x1200dpi - 9.0 Pass | Thick paper - Fabric |
| EPSON Precision Dot CMYK | 600x1200dpi - 9.0 Pass HD |
Thick paper - Fabric Thick paper - Rigid |
| EPSON Precision Dot CMYKcm | 300x600dpi - 1.1 Pass |
Thin paper - Fabric Thick paper - Fabric |
| EPSON Precision Dot CMYKcm | 300x600dpi - 1.5 Pass |
Thin paper - Fabric Thick paper - Fabric |
| EPSON Precision Dot CMYKcm | 300x600dpi - 2.2 Pass |
Thin paper - Fabric Thick paper - Fabric |
| EPSON Precision Dot CMYKcm | 600x600dpi - 2.2 Pass |
Thin paper - Fabric Thick paper - Fabric |
| EPSON Precision Dot CMYKcm | 600x600dpi - 2.7 Pass |
Thin paper - Fabric Thick paper - Fabric |
| EPSON Precision Dot CMYKcm | 600x600dpi - 4.4 Pass |
Thin paper - Fabric Thick paper - Fabric |
| EPSON Precision Dot CMYKcm | 600x600dpi - 4.4 Pass HD |
Thin paper - Fabric Thick paper - Fabric |
| EPSON Precision Dot CMYKcm | 600x1200dpi - 7.0 Pass |
Thick paper - Fabric Thick paper - Rigid |
| EPSON Precision Dot CMYKcm | 600x1200dpi - 7.0 Pass HD | Thick paper - Fabric |
| EPSON Precision Dot CMYKcm | 600x1200dpi - 9.0 Pass | Thick paper - Fabric |
| EPSON Precision Dot CMYKcm | 600x1200dpi - 9.0 Pass HD |
Thick paper - Fabric Thick paper - Rigid |
| EPSON Precision Dot CMYKOV | 300x600dpi - 1.1 Pass |
Thin paper - Fabric Thick paper - Fabric |
| EPSON Precision Dot CMYKOV | 300x600dpi - 1.5 Pass |
Thin paper - Fabric Thick paper - Fabric |
| EPSON Precision Dot CMYKOV | 300x600dpi - 2.2 Pass |
Thin paper - Fabric Thick paper - Fabric |
| EPSON Precision Dot CMYKOV | 600x600dpi - 2.2 Pass |
Thin paper - Fabric Thick paper - Fabric |
| EPSON Precision Dot CMYKOV | 600x600dpi - 2.7 Pass |
Thin paper - Fabric Thick paper - Fabric |
| EPSON Precision Dot CMYKOV | 600x600dpi - 4.4 Pass |
Thin paper - Fabric Thick paper - Fabric |
| EPSON Precision Dot CMYKOV | 600x600dpi - 4.4 Pass HD |
Thin paper - Fabric Thick paper - Fabric |
| EPSON Precision Dot CMYKOV | 600x1200dpi - 7.0 Pass |
Thick paper - Fabric Thick paper - Rigid |
| EPSON Precision Dot CMYKOV | 600x1200dpi - 7.0 Pass HD | Thick paper - Fabric |
| EPSON Precision Dot CMYKOV | 600x1200dpi - 9.0 Pass | Thick paper - Fabric |
| EPSON Precision Dot CMYKOV | 600x1200dpi - 9.0 Pass HD |
Thick paper - Fabric Thick paper - Rigid |
| EPSON Precision Dot CFpFyK | 300x600dpi - 1.1 Pass |
Thin paper - Fabric Thick paper - Fabric |
| EPSON Precision Dot CFpFyK | 300x600dpi - 1.5 Pass |
Thin paper - Fabric Thick paper - Fabric |
| EPSON Precision Dot CFpFyK | 300x600dpi - 2.2 Pass |
Thin paper - Fabric Thick paper - Fabric |
| EPSON Precision Dot CFpFyK | 600x600dpi - 2.2 Pass |
Thin paper - Fabric Thick paper - Fabric |
| EPSON Precision Dot CFpFyK | 600x600dpi - 2.7 Pass |
Thin paper - Fabric Thick paper - Fabric |
| EPSON Precision Dot CFpFyK | 600x600dpi - 4.4 Pass |
Thin paper - Fabric Thick paper - Fabric |
| EPSON Precision Dot CFpFyK | 600x600dpi - 4.4 Pass HD |
Thin paper - Fabric Thick paper - Fabric |
| EPSON Precision Dot CFpFyK | 600x1200dpi - 7.0 Pass |
Thick paper - Fabric Thick paper - Rigid |
| EPSON Precision Dot CFpFyK | 600x1200dpi - 7.0 Pass HD | Thick paper - Fabric |
| EPSON Precision Dot CFpFyK | 600x1200dpi - 9.0 Pass | Thick paper - Fabric |
| EPSON Precision Dot CFpFyK | 600x1200dpi - 9.0 Pass HD |
Thick paper - Fabric Thick paper - Rigid |
| EPSON Precision Dot CMFyK | 300x600dpi - 1.1 Pass |
Thin paper - Fabric Thick paper - Fabric |
| EPSON Precision Dot CMFyK | 300x600dpi - 1.5 Pass |
Thin paper - Fabric Thick paper - Fabric |
| EPSON Precision Dot CMFyK | 300x600dpi - 2.2 Pass |
Thin paper - Fabric Thick paper - Fabric |
| EPSON Precision Dot CMFyK | 600x600dpi - 2.2 Pass |
Thin paper - Fabric Thick paper - Fabric |
| EPSON Precision Dot CMFyK | 600x600dpi - 2.7 Pass |
Thin paper - Fabric Thick paper - Fabric |
| EPSON Precision Dot CMFyK | 600x600dpi - 4.4 Pass |
Thin paper - Fabric Thick paper - Fabric |
| EPSON Precision Dot CMFyK | 600x600dpi - 4.4 Pass HD |
Thin paper - Fabric Thick paper - Fabric |
| EPSON Precision Dot CMFyK | 600x1200dpi - 7.0 Pass |
Thick paper - Fabric Thick paper - Rigid |
| EPSON Precision Dot CMFyK | 600x1200dpi - 7.0 Pass HD | Thick paper - Fabric |
| EPSON Precision Dot CMFyK | 600x1200dpi - 9.0 Pass | Thick paper - Fabric |
| EPSON Precision Dot CMFyK | 600x1200dpi - 9.0 Pass HD |
Thick paper - Fabric Thick paper - Rigid |
| EPSON Precision Dot CMYK FpFy | 300x600dpi - 1.1 Pass |
Thin paper - Fabric Thick paper - Fabric |
| EPSON Precision Dot CMYK FpFy | 300x600dpi - 1.5 Pass |
Thin paper - Fabric Thick paper - Fabric |
| EPSON Precision Dot CMYK FpFy | 300x600dpi - 2.2 Pass |
Thin paper - Fabric Thick paper - Fabric |
| EPSON Precision Dot CMYK FpFy | 600x600dpi - 2.2 Pass |
Thin paper - Fabric Thick paper - Fabric |
| EPSON Precision Dot CMYK FpFy | 600x600dpi - 2.7 Pass |
Thin paper - Fabric Thick paper - Fabric |
| EPSON Precision Dot CMYK FpFy | 600x600dpi - 4.4 Pass |
Thin paper - Fabric Thick paper - Fabric |
| EPSON Precision Dot CMYK FpFy | 600x600dpi - 4.4 Pass HD |
Thin paper - Fabric Thick paper - Fabric |
| EPSON Precision Dot CMYK FpFy | 600x1200dpi - 7.0 Pass |
Thick paper - Fabric Thick paper - Rigid |
| EPSON Precision Dot CMYK FpFy | 600x1200dpi - 7.0 Pass HD | Thick paper - Fabric |
| EPSON Precision Dot CMYK FpFy | 600x1200dpi - 9.0 Pass | Thick paper - Fabric |
| EPSON Precision Dot CMYK FpFy | 600x1200dpi - 9.0 Pass HD |
Thick paper - Fabric Thick paper - Rigid |
Printmode available by media type
| Media type | Printmode |
| Thin paper - Fabric |
300x600dpi - EPSON Precision Dot CMYK - 1.1 Pass 300x600dpi - EPSON Precision Dot CMYKcm - 1.1 Pass 300x600dpi - EPSON Precision Dot CMYKOV - 1.1 Pass 300x600dpi - EPSON Precision Dot CFpFyK - 1.1 Pass 300x600dpi - EPSON Precision Dot CMFyK - 1.1 Pass 300x600dpi - EPSON Precision Dot CMYK FpFy - 1.1 Pass 300x600dpi - EPSON Precision Dot CMYK - 1.5 Pass 300x600dpi - EPSON Precision Dot CMYKcm - 1.5 Pass 300x600dpi - EPSON Precision Dot CMYKOV - 1.5 Pass 300x600dpi - EPSON Precision Dot CFpFyK - 1.5 Pass 300x600dpi - EPSON Precision Dot CMFyK - 1.5 Pass 300x600dpi - EPSON Precision Dot CMYK FpFy - 1.5 Pass 300x600dpi - EPSON Precision Dot CMYK - 2.2 Pass 300x600dpi - EPSON Precision Dot CMYKcm - 2.2 Pass 300x600dpi - EPSON Precision Dot CMYKOV - 2.2 Pass 300x600dpi - EPSON Precision Dot CFpFyK - 2.2 Pass 300x600dpi - EPSON Precision Dot CMFyK - 2.2 Pass 300x600dpi - EPSON Precision Dot CMYK FpFy - 2.2 Pass 600x600dpi - EPSON Precision Dot CMYK - 2.2 Pass 600x600dpi - EPSON Precision Dot CMYKcm - 2.2 Pass 600x600dpi - EPSON Precision Dot CMYKOV - 2.2 Pass 600x600dpi - EPSON Precision Dot CFpFyK - 2.2 Pass 600x600dpi - EPSON Precision Dot CMFyK - 2.2 Pass 600x600dpi - EPSON Precision Dot CMYK FpFy - 2.2 Pass 600x600dpi - EPSON Precision Dot CMYK - 2.7 Pass 600x600dpi - EPSON Precision Dot CMYKcm - 2.7 Pass 600x600dpi - EPSON Precision Dot CMYKOV - 2.7 Pass 600x600dpi - EPSON Precision Dot CFpFyK - 2.7 Pass 600x600dpi - EPSON Precision Dot CMFyK - 2.7 Pass 600x600dpi - EPSON Precision Dot CMYK FpFy - 2.7 Pass 600x600dpi - EPSON Precision Dot CMYK - 4.4 Pass 600x600dpi - EPSON Precision Dot CMYKcm - 4.4 Pass 600x600dpi - EPSON Precision Dot CMYKOV - 4.4 Pass 600x600dpi - EPSON Precision Dot CFpFyK - 4.4 Pass 600x600dpi - EPSON Precision Dot CMFyK - 4.4 Pass 600x600dpi - EPSON Precision Dot CMYK FpFy - 4.4 Pass 600x600dpi - EPSON Precision Dot CMYK - 4.4 Pass HD 600x600dpi - EPSON Precision Dot CMYKcm - 4.4 Pass HD 600x600dpi - EPSON Precision Dot CMYKOV - 4.4 Pass HD 600x600dpi - EPSON Precision Dot CFpFyK - 4.4 Pass HD 600x600dpi - EPSON Precision Dot CMFyK - 4.4 Pass HD 600x600dpi - EPSON Precision Dot CMYK FpFy - 4.4 Pass HD |
| Thick paper - Fabric |
300x600dpi - EPSON Precision Dot CMYK - 1.1 Pass 300x600dpi - EPSON Precision Dot CMYKcm - 1.1 Pass 300x600dpi - EPSON Precision Dot CMYKOV - 1.1 Pass 300x600dpi - EPSON Precision Dot CFpFyK - 1.1 Pass 300x600dpi - EPSON Precision Dot CMFyK - 1.1 Pass 300x600dpi - EPSON Precision Dot CMYK FpFy - 1.1 Pass 300x600dpi - EPSON Precision Dot CMYK - 1.5 Pass 300x600dpi - EPSON Precision Dot CMYKcm - 1.5 Pass 300x600dpi - EPSON Precision Dot CMYKOV - 1.5 Pass 300x600dpi - EPSON Precision Dot CFpFyK - 1.5 Pass 300x600dpi - EPSON Precision Dot CMFyK - 1.5 Pass 300x600dpi - EPSON Precision Dot CMYK FpFy - 1.5 Pass 300x600dpi - EPSON Precision Dot CMYK - 2.2 Pass 300x600dpi - EPSON Precision Dot CMYKcm - 2.2 Pass 300x600dpi - EPSON Precision Dot CMYKOV - 2.2 Pass 300x600dpi - EPSON Precision Dot CFpFyK - 2.2 Pass 300x600dpi - EPSON Precision Dot CMFyK - 2.2 Pass 300x600dpi - EPSON Precision Dot CMYK FpFy - 2.2 Pass 600x600dpi - EPSON Precision Dot CMYK - 2.2 Pass 600x600dpi - EPSON Precision Dot CMYKcm - 2.2 Pass 600x600dpi - EPSON Precision Dot CMYKOV - 2.2 Pass 600x600dpi - EPSON Precision Dot CFpFyK - 2.2 Pass 600x600dpi - EPSON Precision Dot CMFyK - 2.2 Pass 600x600dpi - EPSON Precision Dot CMYK FpFy - 2.2 Pass 600x600dpi - EPSON Precision Dot CMYK - 2.7 Pass 600x600dpi - EPSON Precision Dot CMYKcm - 2.7 Pass 600x600dpi - EPSON Precision Dot CMYKOV - 2.7 Pass 600x600dpi - EPSON Precision Dot CFpFyK - 2.7 Pass 600x600dpi - EPSON Precision Dot CMFyK - 2.7 Pass 600x600dpi - EPSON Precision Dot CMYK FpFy - 2.7 Pass 600x600dpi - EPSON Precision Dot CMYK - 4.4 Pass 600x600dpi - EPSON Precision Dot CMYKcm - 4.4 Pass 600x600dpi - EPSON Precision Dot CMYKOV - 4.4 Pass 600x600dpi - EPSON Precision Dot CFpFyK - 4.4 Pass 600x600dpi - EPSON Precision Dot CMFyK - 4.4 Pass 600x600dpi - EPSON Precision Dot CMYK FpFy - 4.4 Pass 600x600dpi - EPSON Precision Dot CMYK - 4.4 Pass HD 600x600dpi - EPSON Precision Dot CMYKcm - 4.4 Pass HD 600x600dpi - EPSON Precision Dot CMYKOV - 4.4 Pass HD 600x600dpi - EPSON Precision Dot CFpFyK - 4.4 Pass HD 600x600dpi - EPSON Precision Dot CMFyK - 4.4 Pass HD 600x600dpi - EPSON Precision Dot CMYK FpFy - 4.4 Pass HD 600x1200dpi - EPSON Precision Dot CMYK - 7.0 Pass 600x1200dpi - EPSON Precision Dot CMYKcm - 7.0 Pass 600x1200dpi - EPSON Precision Dot CMYKOV - 7.0 Pass 600x1200dpi - EPSON Precision Dot CFpFyK - 7.0 Pass 600x1200dpi - EPSON Precision Dot CMFyK - 7.0 Pass 600x1200dpi - EPSON Precision Dot CMYK FpFy - 7.0 Pass 600x1200dpi - EPSON Precision Dot CMYK - 7.0 Pass HD 600x1200dpi - EPSON Precision Dot CMYKcm - 7.0 Pass HD 600x1200dpi - EPSON Precision Dot CMYKOV - 7.0 Pass HD 600x1200dpi - EPSON Precision Dot CFpFyK - 7.0 Pass HD 600x1200dpi - EPSON Precision Dot CMFyK - 7.0 Pass HD 600x1200dpi - EPSON Precision Dot CMYK FpFy - 7.0 Pass HD 600x1200dpi - EPSON Precision Dot CMYK - 9.0 Pass 600x1200dpi - EPSON Precision Dot CMYKcm - 9.0 Pass 600x1200dpi - EPSON Precision Dot CMYKOV - 9.0 Pass 600x1200dpi - EPSON Precision Dot CFpFyK - 9.0 Pass 600x1200dpi - EPSON Precision Dot CMFyK - 9.0 Pass 600x1200dpi - EPSON Precision Dot CMYK FpFy - 9.0 Pass 600x1200dpi - EPSON Precision Dot CMYK - 9.0 Pass HD 600x1200dpi - EPSON Precision Dot CMYKcm - 9.0 Pass HD 600x1200dpi - EPSON Precision Dot CMYKOV - 9.0 Pass HD 600x1200dpi - EPSON Precision Dot CFpFyK - 9.0 Pass HD 600x1200dpi - EPSON Precision Dot CMFyK - 9.0 Pass HD 600x1200dpi - EPSON Precision Dot CMYK FpFy - 9.0 Pass HD |
| Thick paper - Rigid |
600x1200dpi - EPSON Precision Dot CMYK - 7.0 Pass 600x1200dpi - EPSON Precision Dot CMYKcm - 7.0 Pass 600x1200dpi - EPSON Precision Dot CMYKOV - 7.0 Pass 600x1200dpi - EPSON Precision Dot CFpFyK - 7.0 Pass 600x1200dpi - EPSON Precision Dot CMFyK - 7.0 Pass 600x1200dpi - EPSON Precision Dot CMYK FpFy - 7.0 Pass 600x1200dpi - EPSON Precision Dot CMYK - 9.0 Pass HD 600x1200dpi - EPSON Precision Dot CMYKcm - 9.0 Pass HD 600x1200dpi - EPSON Precision Dot CMYKOV - 9.0 Pass HD 600x1200dpi - EPSON Precision Dot CFpFyK - 9.0 Pass HD 600x1200dpi - EPSON Precision Dot CMFyK - 9.0 Pass HD 600x1200dpi - EPSON Precision Dot CMYK FpFy - 9.0 Pass HD |
Loading
- Maximum roll size: 64"
Custom loading with EasySelect
EasySelect is the capability for CalderaRIP to use the size and type of loaded media in the printer.
This printer supports 2 levels of selection:

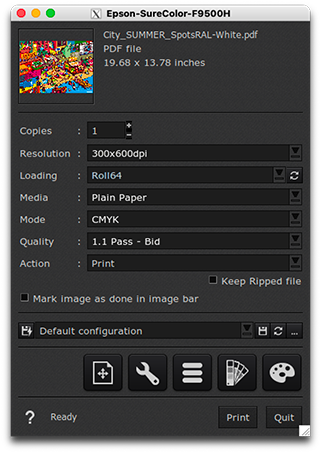

- CustomLoading: uses a custom size (sheet or roll) defined at last moment in the Print module interface.
- AutoLoading: uses the size of the media currently loaded in the printer.
Media
Info
These drivers come with only a default media not calibrated. You can:
- Create media from scratch and/or import EMX files at the EasyMedia module
- Synchronize media from Epson Edge Dashboard
Media synchronization
To synchronize media from the EPSON Edge Dashboard, you need to enter the serial number of the printer in CalderaRIP.

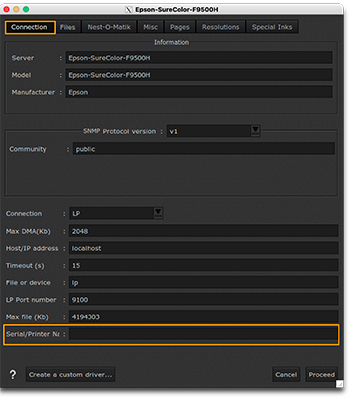

Go to ServerAdmin, select your printer, and click Configure. Then, access the Connection tab. Here, fill in the Serial/Printer Name field with the serial number of your printer:
Once the previous process is done, you will be able to synchronize media in EasyMedia. For more information:
Action
Available actions are:
- Print: This action rips and prints the file simultaneously.
- RIP: Rips the file and holds it in the Spooler.
- RIP then Print: Rips the entire file, and then sends the file to print.
- Nest: This action nests all images sent to the printer and holds them in the Spooler.
Keep Ripped file (only available with "Print" and "Rip then Print" actions). When this box is checked, the sent file remains in the Spooler so you can reprint the job later on.
