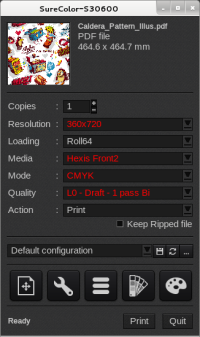

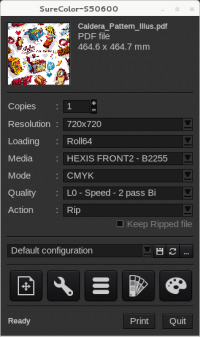

Epson SureColor S30600, S50600 and S70600 - Print Module Interface

Updated February 26, 2026 12:51

Resolution

Available resolutions:

360x720
720x720
720x1440
1440x1440
(Only on S70600) 360x360

In addition to the standard resolutions, composed resolutions also exist for the S50600 and S70600 drivers.

Loading

Roll64, 60, 54, 44, 36, and 24
Custom (...)

Auto and Custom Loading with EasySelect

EasySelect is the capability for CalderaRIP to use the size and type of loaded media in the printer.

This printer supports 2 levels of selection:

CustomLoading: uses a custom size (sheet or roll) defined at last moment in the Print module interface.
AutoLoading: uses the size of the media currently loaded in the printer.

Mode

S30600 and S50600

CMYK
Epson HTM CMYK

The S50600 printer driver supports white as a Spot Ink. Learn more.

S70600

Info

Printer driver(s) compatible with Custom Inksets. For more information, partners and resellers should consult the Partners Portal; end users can find details on our website.

CMYK
CMYKcm
CMYKcmk
СМYКО
CMYKcmO

CMYKcmkO
СМYКО +silver
CMYKcmO+silver
CMYKcmkO+silver
CMYKcmk+silver

Epson HTM CMYK
Epson HTM CMYKcmk
Epson HTM CMYKcmk +silver
Epson HTM CMYKcmkO
Epson HTM CMYKcmkO +silver

The S70600 printer driver supports white and silver (metallic) as a Spot Inks. Learn more.

Quality

There are two categories of qualities: unidirectional and bidirectional. Bidirectional means that the head prints during both passes. With unidirectional quality, the head prints a stripe and then moves back to its original position before printing the next stripe.

The level number represents the number of passes done by the head on one printed stripe. The level number represents the number of passes the head makes on one printed stripe. The higher the pass number, the higher the quality.

The number and characteristics of the levels vary depending on the chosen quality.

Changing a profile generated with CMYK8 mode

Profiles created with the CMYK8 mode must be changed. CMYK8 is the former name of the Epson raster mode. To remain available, it must be replaced by EpsonHTM CMYK modes. Follow this procedure to modify the profiles without performing additional calculations or taking target measurements:

Open EasyMedia and select your Epson SureColor S30600, S50600, or S70600 device.
Double-click your media to open its profile list.
Select your profile, then click Edit.
Change the profile mode according to the following rule: Use EpsonHTM CMYK cmkO or CMYKcmko for S70600 mode.
Click OK to save the change. A message will appear informing you that changing the profile printing mode is not recommended. Click Yes to confirm the change and finish.
(Optional) Repeat these steps for every media with profiles using the CMYK8 mode.

Action

Available actions are:

Print: This action rips and prints the file simultaneously.
RIP: Rips the file and holds it in the Spooler.
RIP then Print: Rips the entire file, and then sends the file to print.
Nest: This action nests all images sent to the printer and holds them in the Spooler.

Keep Ripped file (only available with "Print" and "Rip then Print" actions). When this box is checked, the sent file remains in the Spooler so you can reprint the job later on.
