Resolution & Quality
Info
When printing with 300 x 450 HQ, the printer may display 3300 x 900, which is normal.
For each quality, you have the choice between bidirectional mode or unidirectional.
Mimaki-JFX200-2531-4c
| 300 x 450 dpi HQ* | 600 x 600 dpi | 600 x 900 dpi | 1200 x 1200 dpi | |
|---|---|---|---|---|
| 6 pass | ✔ | |||
| 8 pass | ✔ | |||
| 8 pass High Speed | ✔ | |||
| 12 pass | ✔ | ✔ | ||
| 12 pass High Speed | ✔ | |||
| 16 pass | ✔ | ✔ | ||
| 16 pass High Speed | ✔ | ✔ | ||
| 24 pass | ✔ | |||
| 24 pass High Speed | ✔ | |||
| 32 pass | ✔ | |||
| 32 pass High Speed | ✔ |
Mimaki-JFX200-2531-6c
| 300 x 450 dpi HQ* | 600 x 600 dpi | 600 x 900 dpi | 1200 x 1200 dpi | |
|---|---|---|---|---|
| 12 pass | ✔ | |||
| 16 pass | ✔ | |||
| 16 pass High Speed | ✔ | |||
| 24 pass | ✔ | ✔ | ||
| 24 pass High Speed | ✔ | |||
| 32 pass | ✔ | ✔ | ||
| 32 pass High Speed | ✔ | ✔ | ||
| 48 pass | ✔ | |||
| 48 pass High Speed | ✔ | |||
| 64 pass | ✔ | |||
| 64 pass High Speed | ✔ |
Loading
|
|
|
|
EasySelect is the capability for CalderaRIP to use the size and type of loaded media in the printer.
This printer supports 2 levels of selection:

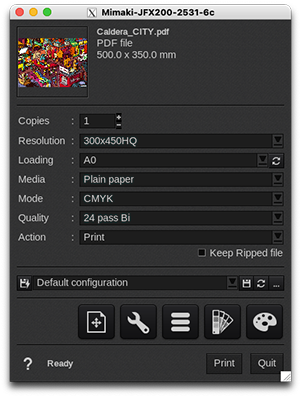

- CustomLoading: uses a custom size (sheet or roll) defined at last moment in the Print module interface.
- AutoLoading: uses the size of the media currently loaded in the printer.
Mode
- CMYK
Spot inks
Warning
Spot inks are only available with the Mimaki-JFX200-2531-6c driver.

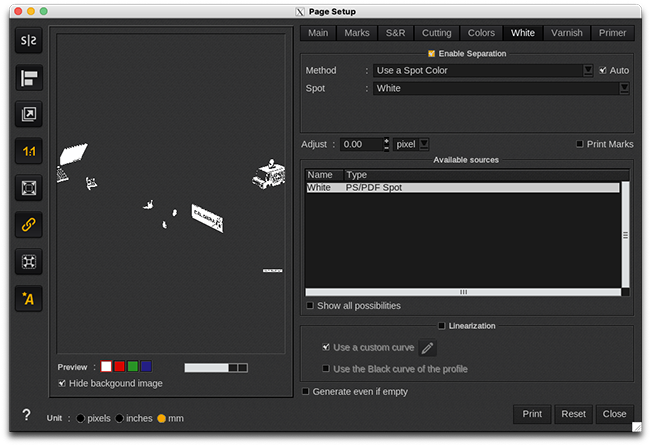

Mimaki JFX200-2531 printers use special inks. For these spot inks, there are specific tabs in the Page Setup window, to be able to configure them:
To have some details on these specific tabs, please refer to this article about Spot Inks.
