HP Latex R Series - Print module interface

Updated November 24, 2022 11:14

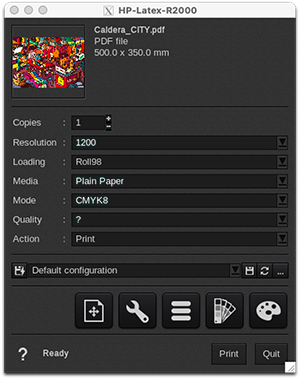

HP Latex R Series - Print module interface.png

Resolution

The Latex R series supports the following rasterization resolutions:

1200
600
300
150

Loading

Roll98*
Roll80*
Roll64
Roll54

Roll42
Roll36
Roll24
Custom

* Only for R2000 & R2000 Plus

EasySelect

EasySelect is the capability for CalderaRIP to use the size and type of loaded media in the printer.

This printer supports 1 level of selection:

CustomLoading: uses a custom size (sheet or roll) defined at last moment in the Print module interface.

Mode

CMYK8 (contone)

Media & Quality

For the Latex R series, qualities are defined by the IPS (Internal Print Server) following this syntax:

This printer has a special profile installation procedure due to the printer's controller-embedded profiles. There is no preconfigured media and qualities. You need to go into EasyMedia to set up your media and qualities with the AutoSync HP feature.

Further information:

Action

The device supports only two actions:

Print.
Nest.

"Rip", "Rip then Print", and "Keep the ripped file" actions are disabled, as the "Print" action sends a RIP file to the controller-mounted directory. You can keep RIP files in the controller and manage to reprint them on the controller directly.

MultiLayer

You are able to print several layers by using the "sandwich" quality mode.

To go deeper:
