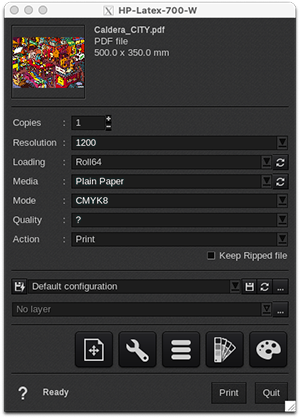

HP Latex 700 / 800 (W) - Print Module Interface

Updated July 08, 2025 11:52

Resolution

The Latex 700 / 800 (W) series support the following rasterization resolutions:

1200
600
300

Loading

Roll64
Roll60
Roll54
Roll50
Roll44

Roll40
Roll36
Roll30
Roll24
Roll20

Roll16
Roll10
RollA0
RollA1
RollB0

RollB1
RollB2
Custom (...)

EasySelect

EasySelect is the capability for CalderaRIP to use the size and type of loaded media in the printer.

This printer supports 2 levels of selection:

CustomLoading: uses a custom size (sheet or roll) defined at last moment in the Print module interface.
AutoLoading: uses the size of the media currently loaded in the printer.

Media

This driver comes with only a default media not calibrated.

Discover how to manage media with EasyMedia by clicking here.

Mode

CMYK8, which corresponds to CMYKcmk (Contone)

Quality

For these printers, qualities are defined by the IPS (Internal Print Server) following this syntax:

This printer has a special profile installation procedure due to the printer's controller-embedded profiles. There is no preconfigured media and qualities. You need to go into EasyMedia to set up your media and qualities with the AutoSync HP feature.

Further information:

Action

Available actions are:

Print: This action rips and prints the file simultaneously.
RIP: Rips the file and holds it in the Spooler.
RIP then Print: Rips the entire file, and then sends the file to print.
Nest: This action nests all images sent to the printer and holds them in the Spooler.

Keep Ripped file (only available with "Print" and "Rip then Print" actions). When this box is checked, the sent file remains in the Spooler so you can reprint the job later on.
