Resolution
- 600 (for text and line printing)
- 300 (for image printing)
Loading
|
|
EasySelect
EasySelect is the capability for CalderaRIP to use the size and type of loaded media in the printer.
This printer supports 1 level of selection:

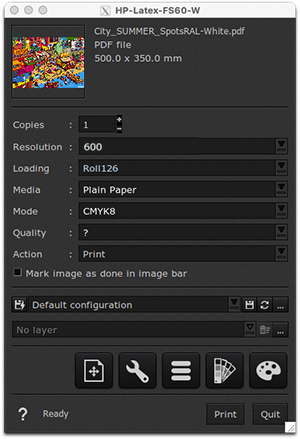

- CustomLoading: uses a custom size (sheet or roll) defined at last moment in the Print module interface.
Media and Quality
This printer has a special profile installation procedure due to the printer's controller-embedded profiles. There is no preconfigured media and qualities. You need to go into EasyMedia to set up your media and qualities with the AutoSync HP feature.
Further information:
Mode
- CMYK8 (Contone)
Action
The device supports only two actions:
- Print.
- Nest.
"Rip", "Rip then Print", and "Keep the ripped file" actions are disabled, as the "Print" action sends a RIP file to the controller-mounted directory. You can keep RIP files in the controller and manage to reprint them on the controller directly.
MultiLayer
This feature is only compatible with the HP Latex FSX0W driver.
You can print several layers by using the "sandwich" quality mode:
To go deeper:
Spot inks
This feature is only compatible with the HP Latex FSX0W driver.

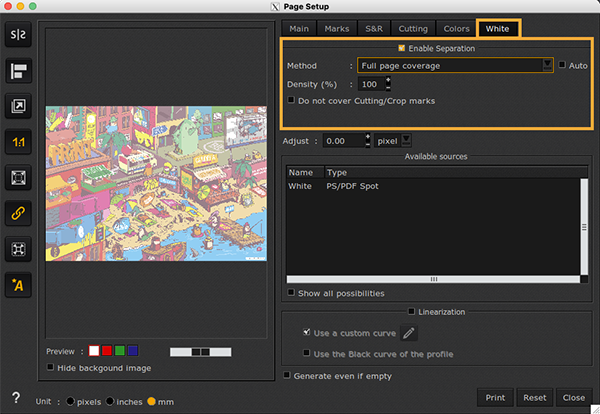

HP Latex FSX0W uses White ink. For this spot ink, there is a specific tab in the Page Setup window, to be able to configure it.
To have some details on these specific tabs, please refer to this article about Spot Inks.
