Supported Models

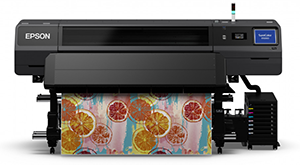

Epson SureColor R50X0(L)

• Large-format (64") roll printers
• Equipped with up to 6 resin inks (hence the R in the name of the model)
• Visit the official website of Epson

Drivers

• Epson-SureColor-R5000 (for R5000 and R5010 models)
• Epson-SureColor-R5000L (for R5000L and R5010L models)

Driver history

• CalderaRIP V17.1
  • These drivers now automatically select the required version of the protocol. If needed, it is also possible to change the SNMP version manually thanks to a new field added to the connection tab of ServerAdmin:


    Info

  Note that if you configure a device to use SNMP V3, you will not be able to access it using SNMP V1.

• CalderaRIP V16.3
  • Revision A (both drivers):
    • Now the drivers use the highest resolution possible for each print mode
    • Removal of the 3-hour time limit check. More info
• CalderaRIP V15.0
  • Revision A (01/2022): Fixed a bug that caused the printing of two copies of the same job to be sent to the error area, while the two requested images were printed correctly.
• CalderaRIP V14.0
  • Epson SureColor R5000 and R5000L supported

Connection

• Ethernet
• USB

Tips and tricks

• Starting with Revision A of V16.3, the driver part to check of job time limit has been removed while still being managed by the model firmware. For special usage that goes out of the normal operations of this model, please contact your Epson dealer.
• Continuous printing:
  • If your production requires using Continuous Printing, we recommend that you use RawIP as the connection type (this should not cause any issue even when the Continuous Print option is not used). You might be interested in reading: How to change the connection of my printer driver?
  • Continuous Printing is supported only if the setting "Use status for job management" is disabled.
• These drivers allow you to sync the EasyMedia module with the Epson Edge Dashboard (formerly known as Epson Control Dashboard). Please take a look at this article to learn more.

Print module interface

Resolutions

• 600x300dpi
• 600x1200dpi
• 1200x1200dpi
• 1200x2400dpi

Loading

• Max Roll 64 inches

EasySelect is the capability for CalderaRIP to use the size and type of loaded media in the printer.

This printer supports 2 levels of selection:

• CustomLoading: uses a custom size (sheet or roll) defined at last moment in the Print module interface.
• AutoLoading: uses the size of the media currently loaded in the printer.

Modes

• EPSON Precision Dot CMYK

Qualities are composed of the number of passes + direction

• Bid: bidirectional
• Uni: unidirectional

Printer settings

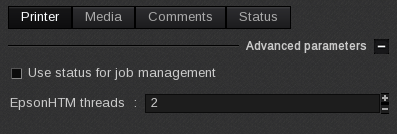

Printer tab

Advanced parameters

• Use status for job management: the driver will react according to the printer status: wait for the end of the previous print in order to launch a new one, check the job compatibility with the media loaded, etc.

• EpsonHTM threads: used to do parallel computation when EPSON Precision Dot mode is in use. If you set too many threads, the printing process may slow down. Leave this value to its default, or try for yourself if increasing the number of threads increases the speed. Everything will be specific to your workstation.

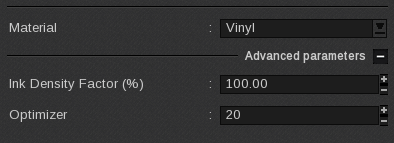

Media tab

• Material: select the reference media that is the closest to the current media. The reference media contains predefined settings you can use to set your media parameters:

Advanced parameters

• Ink Density Factor (%): maximum level of ink allowed. Increasing this factor might increase the Gamut but it might also create over-inking issues. This value indicates the absorption capability of the medium being used, and directly impacts the output and ink usage.

Comments tab

On this tab you can see comments coming from the EasyMedia module. It can include comments from the global media window and from the profile project window.

Status tab

• Status: global state of the printer:
  • Ready
  • Not available
  • Printing

All data is coming from the printer, if it is not available, nothing can be displayed.
