Resolutions
|
|
Loading
- Roll 10, 13, 16, 17, 22, 24, 36, and 44
- Borderless (several options)
- Custom (...)
Custom and Auto Loading
EasySelect is the capability for CalderaRIP to use the size and type of loaded media in the printer.
This printer supports 2 levels of selection:

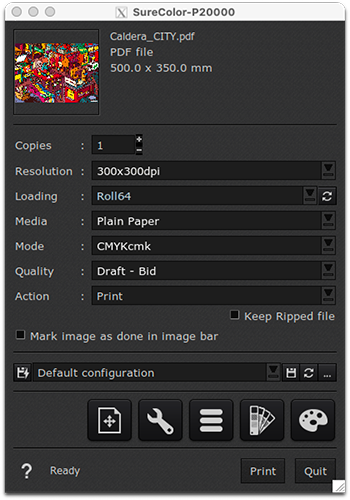

- CustomLoading: uses a custom size (sheet or roll) defined at last moment in the Print module interface.
- AutoLoading: uses the size of the media currently loaded in the printer.
Sheet printing and borderless print sizes
These printers have specific margin requirements when printing media such as posterboard. The sheet must be configured with the following margins:
- Top : 3mm
- Bottom : 16mm
- Left/Right : 0mm or 3mm
When selecting a borderless (0mm) margin, refer to the following list for supported roll sizes:
|
|
|
You may be interested in reading: How to add a page or roll size to the printer driver?
Media
This driver comes with only a default media not calibrated.
Media synchronization
In ServerAdmin, the Serial/Printer name must be filled in with the printer's serial number to connect to the EPSON Edge Dashboard for media synchronization. This action is only possible in the EasyMedia module. You may be interested in reading:
- How to import EMX files from EED to EasyMedia?
- Media/Profile reference in the Printer Settings of these models
Modes
|
|
Quality
- Draft - Bid
- Draft - Uni
Action
Available actions are:
- Print: This action rips and prints the file simultaneously.
- RIP: Rips the file and holds it in the Spooler.
- RIP then Print: Rips the entire file, and then sends the file to print.
- Nest: This action nests all images sent to the printer and holds them in the Spooler.
Keep Ripped file (only available with "Print" and "Rip then Print" actions). When this box is checked, the sent file remains in the Spooler so you can reprint the job later on.
