Resolution
| HP Latex 2700 | HP Latex 2700 W | |
|---|---|---|
| 150 x 150 dpi |
|
|
| 300 x 300 dpi |
|
|
| 600 x 600 dpi |
|
|
Loading
| HP Latex 2700 | HP Latex 2700 W | |
|---|---|---|
| Maximum roll size | 3,2 m (126") | |
EasySelect
EasySelect is the capability for CalderaRIP to use the size and type of loaded media in the printer.
This printer supports 1 level of selection:

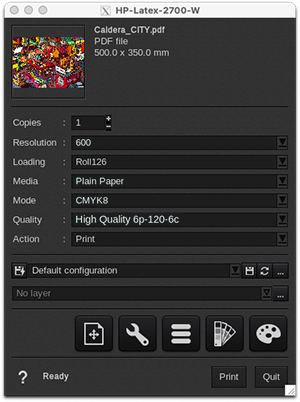

- CustomLoading: uses a custom size (sheet or roll) defined at last moment in the Print module interface.
Media & Quality
This printer has a special profile installation procedure due to the printer's controller embedded profiles. There is no preconfigured media and qualities. You need to go into EasyMedia to set up your media and qualities with AutoSync HP feature.
Further information:
Mode
| HP Latex 2700 | HP Latex 2700 W | |
|---|---|---|
| CMYK8 |
|
|
Action
The device supports only two actions:
- Print.
- Nest.
"Rip", "Rip then Print", and "Keep the ripped file" actions are disabled, as the "Print" action sends a RIP file to the controller-mounted directory. You can keep RIP files in the controller and manage to reprint them on the controller directly.
MultiLayer
Info
This feature is only compatible with HP Latex 2700 W driver.
You are able to print several layers by using the "sandwich" quality mode.
To go deeper:
Spot inks
Info
This feature is only compatible with HP Latex 2700 W driver.
HP Latex 2700 W uses White ink. For this spot ink, there is a specific tab in the Page Setup window, to be able to configure it.
To have some details on these specific tabs, please refer to this article about Spot Inks.
