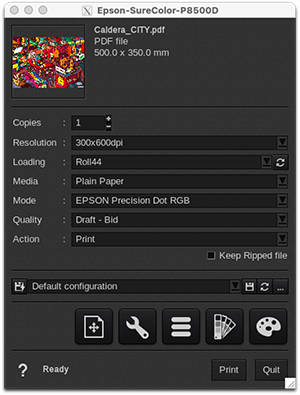

Epson SureColor P6500(D) and P8500D - Print module interface

Updated


Resolutions, printing modes, and qualities

All three models use RGB (Contone) printing with the following modes:

Click here to expand

Mode: EPSON Precision Dot RGB

Quality 300 x 600 dpi 600 x 600 dpi 1200 x 1200 dpi 2400 x 1200 dpi
Draft ✔
Speed ✔ ✔
Quality   ✔ ✔
High quality     ✔ ✔
Maximum quality       ✔



Mode: EPSON Precision Dot RGB (CAD)

Quality 300 x 600 dpi 600 x 600 dpi 600 x 1200 dpi 1200 x 1200 dpi
Draft ✔
Speed   ✔
Quality     ✔
High quality       ✔



Mode: EPSON Precision Dot RGB (GIS)

Quality 300 x 600 dpi 600 x 600 dpi 1200 x 1200 dpi
Draft
Speed ✔ ✔
Quality   ✔ ✔
High quality     ✔



Mode: EPSON Precision Dot B&W

Quality 1200 x 1200 dpi 2400 x 1200 dpi
Quality ✔
High quality ✔ ✔
Maximum quality   ✔



Loading

  SC-P6500 (D) SC-P8500D
Maximum roll size 24" (0,61 m) 44" (1,12 m)
Borderless ✔ ✔



Custom loading with EasySelect

EasySelect is the capability for CalderaRIP to use the size and type of loaded media in the printer.

This printer supports 2 levels of selection:

  • CustomLoading: uses a custom size (sheet or roll) defined at last moment in the Print module interface.
  • AutoLoading: uses the size of the media currently loaded in the printer.



Media

  Info

This driver comes with only a default media not calibrated. It is possible to manage other media from scratch through our EasyMedia module and/or to synchronize media from Epson Edge Dashboard.



Media synchronization

To synchronize media from EPSON Edge Dashboard, you need to enter the serial number of the printer in CalderaRIP.

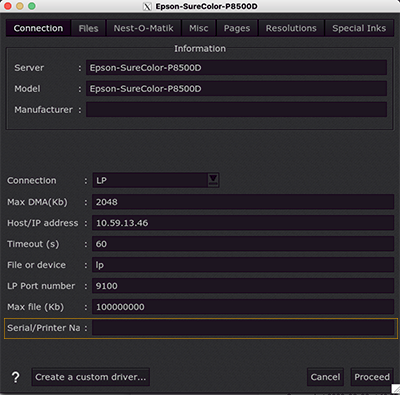

Go to ServerAdmin, select your printer, and click Configure. Then, access the Connection tab. Here, fill in the Serial/Printer Name field with the serial number of your printer:


Once the previous process is done, you will be able to synchronize media in EasyMedia. For more information:

  Warning

It is not possible to import EMX files in EasyMedia. Please contact Epson for questions related to this topic.



Media compatibility with the different print modes

Click here to expand

Reference Media

Resolution - Mode - Quality

Plain Paper
  • 300x600dpi - EPSON Precision Dot RGB - Draft
  • 300x600dpi - EPSON Precision Dot RGB - Speed
  • 300x600dpi - EPSON Precision Dot RGB (GIS) - Speed
  • 600x600dpi - EPSON Precision Dot RGB - Quality
  • 600x600dpi - EPSON Precision Dot RGB (GIS) - Quality
  • 1200x1200dpi - EPSON Precision Dot RGB - High Quality
  • 1200x1200dpi - EPSON Precision Dot RGB (GIS) - High Quality

Plain Paper LD
  • 300x600dpi - EPSON Precision Dot RGB (CAD) - Draft
  • 600x600dpi - EPSON Precision Dot RGB (CAD) - Speed
  • 600x1200dpi - EPSON Precision Dot RGB (CAD) - Quality
  • 1200x1200dpi - EPSON Precision Dot RGB (CAD) - High Quality

Premium Luster Photo Paper (260)
  • 600x600dpi - EPSON Precision Dot RGB - Speed
  • 1200x1200dpi - EPSON Precision Dot RGB - Quality
  • 1200x1200dpi - EPSON Precision Dot B&W - Quality
  • 1200x1200dpi - EPSON Precision Dot RGB - High Quality
  • 1200x1200dpi - EPSON Precision Dot B&W - High Quality
  • 2400x1200dpi - EPSON Precision Dot RGB - High Quality
  • 2400x1200dpi - EPSON Precision Dot B&W - High Quality
  • 2400x1200dpi - EPSON Precision Dot RGB - Maximum Quality
  • 2400x1200dpi - EPSON Precision Dot B&W - Maximum Quality

Premium Glossy Photo Paper (250)
  • 600x600dpi - EPSON Precision Dot RGB - Speed
  • 1200x1200dpi - EPSON Precision Dot RGB - Quality
  • 1200x1200dpi - EPSON Precision Dot B&W - Quality
  • 1200x1200dpi - EPSON Precision Dot RGB - High Quality
  • 1200x1200dpi - EPSON Precision Dot B&W - High Quality
  • 2400x1200dpi - EPSON Precision Dot RGB - High Quality
  • 2400x1200dpi - EPSON Precision Dot B&W - High Quality
  • 2400x1200dpi - EPSON Precision Dot RGB - Maximum Quality
  • 2400x1200dpi - EPSON Precision Dot B&W - Maximum Quality

Premium Semigloss Photo Paper (250)
  • 600x600dpi - EPSON Precision Dot RGB - Speed
  • 1200x1200dpi - EPSON Precision Dot RGB - Quality
  • 1200x1200dpi - EPSON Precision Dot B&W - Quality
  • 1200x1200dpi - EPSON Precision Dot RGB - High Quality
  • 1200x1200dpi - EPSON Precision Dot B&W - High Quality
  • 2400x1200dpi - EPSON Precision Dot RGB - High Quality
  • 2400x1200dpi - EPSON Precision Dot B&W - High Quality
  • 2400x1200dpi - EPSON Precision Dot RGB - Maximum Quality
  • 2400x1200dpi - EPSON Precision Dot B&W - Maximum Quality

Premium Semimatte Photo Paper (260)
  • 600x600dpi - EPSON Precision Dot RGB - Speed
  • 1200x1200dpi - EPSON Precision Dot RGB - Quality
  • 1200x1200dpi - EPSON Precision Dot B&W - Quality
  • 1200x1200dpi - EPSON Precision Dot RGB - High Quality
  • 1200x1200dpi - EPSON Precision Dot B&W - High Quality
  • 2400x1200dpi - EPSON Precision Dot RGB - High Quality
  • 2400x1200dpi - EPSON Precision Dot B&W - High Quality
  • 2400x1200dpi - EPSON Precision Dot RGB - Maximum Quality
  • 2400x1200dpi - EPSON Precision Dot B&W - Maximum Quality

Premium Glossy Photo Paper (170)
  • 600x600dpi - EPSON Precision Dot RGB - Speed
  • 1200x1200dpi - EPSON Precision Dot RGB - Quality
  • 1200x1200dpi - EPSON Precision Dot B&W - Quality
  • 1200x1200dpi - EPSON Precision Dot RGB - High Quality
  • 1200x1200dpi - EPSON Precision Dot B&W - High Quality
  • 2400x1200dpi - EPSON Precision Dot RGB - High Quality
  • 2400x1200dpi - EPSON Precision Dot B&W - High Quality
  • 2400x1200dpi - EPSON Precision Dot RGB - Maximum Quality
  • 2400x1200dpi - EPSON Precision Dot B&W - Maximum Quality

Premium Semigloss Photo Paper (170)
  • 600x600dpi - EPSON Precision Dot RGB - Speed
  • 1200x1200dpi - EPSON Precision Dot RGB - Quality
  • 1200x1200dpi - EPSON Precision Dot B&W - Quality
  • 1200x1200dpi - EPSON Precision Dot RGB - High Quality
  • 1200x1200dpi - EPSON Precision Dot B&W - High Quality
  • 2400x1200dpi - EPSON Precision Dot RGB - High Quality
  • 2400x1200dpi - EPSON Precision Dot B&W - High Quality
  • 2400x1200dpi - EPSON Precision Dot RGB - Maximum Quality
  • 2400x1200dpi - EPSON Precision Dot B&W - Maximum Quality

Premium Glossy Photo Paper
  • 600x600dpi - EPSON Precision Dot RGB - Speed
  • 1200x1200dpi - EPSON Precision Dot RGB - Quality
  • 1200x1200dpi - EPSON Precision Dot B&W - Quality
  • 1200x1200dpi - EPSON Precision Dot RGB - High Quality
  • 1200x1200dpi - EPSON Precision Dot B&W - High Quality
  • 2400x1200dpi - EPSON Precision Dot RGB - High Quality
  • 2400x1200dpi - EPSON Precision Dot B&W - High Quality
  • 2400x1200dpi - EPSON Precision Dot RGB - Maximum Quality
  • 2400x1200dpi - EPSON Precision Dot B&W - Maximum Quality

Premium Semigloss Photo Paper
  • 600x600dpi - EPSON Precision Dot RGB - Speed
  • 1200x1200dpi - EPSON Precision Dot RGB - Quality
  • 1200x1200dpi - EPSON Precision Dot B&W - Quality
  • 1200x1200dpi - EPSON Precision Dot RGB - High Quality
  • 1200x1200dpi - EPSON Precision Dot B&W - High Quality
  • 2400x1200dpi - EPSON Precision Dot RGB - High Quality
  • 2400x1200dpi - EPSON Precision Dot B&W - High Quality
  • 2400x1200dpi - EPSON Precision Dot RGB - Maximum Quality
  • 2400x1200dpi - EPSON Precision Dot B&W - Maximum Quality

Premium Luster Photo Paper
  • 600x600dpi - EPSON Precision Dot RGB - Speed
  • 1200x1200dpi - EPSON Precision Dot RGB - Quality
  • 1200x1200dpi - EPSON Precision Dot B&W - Quality
  • 1200x1200dpi - EPSON Precision Dot RGB - High Quality
  • 1200x1200dpi - EPSON Precision Dot B&W - High Quality
  • 2400x1200dpi - EPSON Precision Dot RGB - High Quality
  • 2400x1200dpi - EPSON Precision Dot B&W - High Quality
  • 2400x1200dpi - EPSON Precision Dot RGB - Maximum Quality
  • 2400x1200dpi - EPSON Precision Dot B&W - Maximum Quality

Photo Paper Gloss 250
  • 600x600dpi - EPSON Precision Dot RGB - Speed
  • 1200x1200dpi - EPSON Precision Dot RGB - Quality
  • 1200x1200dpi - EPSON Precision Dot B&W - Quality
  • 1200x1200dpi - EPSON Precision Dot RGB - High Quality
  • 1200x1200dpi - EPSON Precision Dot B&W - High Quality
  • 2400x1200dpi - EPSON Precision Dot RGB - High Quality
  • 2400x1200dpi - EPSON Precision Dot B&W - High Quality
  • 2400x1200dpi - EPSON Precision Dot RGB - Maximum Quality
  • 2400x1200dpi - EPSON Precision Dot B&W - Maximum Quality

Baryta
  • 2400x1200dpi - EPSON Precision Dot RGB - High Quality
  • 2400x1200dpi - EPSON Precision Dot B&W - High Quality
  • 2400x1200dpi - EPSON Precision Dot RGB - Maximum Quality
  • 2400x1200dpi - EPSON Precision Dot B&W - Maximum Quality

Velvet Fine Art Paper
  • 2400x1200dpi - EPSON Precision Dot RGB - Maximum Quality
  • 2400x1200dpi - EPSON Precision Dot B&W - Maximum Quality

Watercolor Paper - Radiant White
  • 2400x1200dpi - EPSON Precision Dot RGB - Maximum Quality

UltraSmooth Fine Art Paper
  • 2400x1200dpi - EPSON Precision Dot RGB - Maximum Quality
  • 2400x1200dpi - EPSON Precision Dot B&W - Maximum Quality

Fine Art Matte
  • 2400x1200dpi - EPSON Precision Dot RGB - Maximum Quality

Canvas Matte
  • 1200x1200dpi - EPSON Precision Dot RGB - Quality
  • 2400x1200dpi - EPSON Precision Dot RGB - High Quality

Canvas Satin
  • 1200x1200dpi - EPSON Precision Dot RGB - Quality
  • 2400x1200dpi - EPSON Precision Dot RGB - High Quality

Singleweight Matte Paper
  • 300x600dpi - EPSON Precision Dot RGB - Draft
  • 600x600dpi - EPSON Precision Dot RGB - Speed
  • 600x600dpi - EPSON Precision Dot RGB (GIS) - Speed
  • 600x600dpi - EPSON Precision Dot RGB - Quality
  • 600x600dpi - EPSON Precision Dot RGB (GIS) - Quality
  • 1200x1200dpi - EPSON Precision Dot RGB - Quality
  • 1200x1200dpi - EPSON Precision Dot RGB (GIS) - Quality
  • 1200x1200dpi - EPSON Precision Dot RGB - High Quality
  • 1200x1200dpi - EPSON Precision Dot RGB (GIS) - High Quality

Singleweight Matte Paper LD
  • 300x600dpi - EPSON Precision Dot RGB (CAD) - Draft
  • 600x600dpi - EPSON Precision Dot RGB (CAD) - Speed
  • 600x1200dpi - EPSON Precision Dot RGB (CAD) - Quality
  • 1200x1200dpi - EPSON Precision Dot RGB (CAD) - High Quality

Doubleweight Matte Paper
  • 600x600dpi - EPSON Precision Dot RGB - Speed
  • 600x600dpi - EPSON Precision Dot RGB (GIS) - Speed
  • 600x600dpi - EPSON Precision Dot RGB - Quality
  • 600x600dpi - EPSON Precision Dot RGB (GIS) - Quality
  • 1200x1200dpi - EPSON Precision Dot RGB - Quality
  • 1200x1200dpi - EPSON Precision Dot RGB (GIS) - Quality
  • 1200x1200dpi - EPSON Precision Dot RGB - High Quality
  • 1200x1200dpi - EPSON Precision Dot RGB (GIS) - High Quality

Enhanced Matte Paper
  • 1200x1200dpi - EPSON Precision Dot RGB - Quality
  • 2400x1200dpi - EPSON Precision Dot RGB - High Quality
  • 2400x1200dpi - EPSON Precision Dot RGB - Maximum Quality

Archival Matte Paper
  • 1200x1200dpi - EPSON Precision Dot RGB - Quality
  • 2400x1200dpi - EPSON Precision Dot RGB - High Quality
  • 2400x1200dpi - EPSON Precision Dot RGB - Maximum Quality

Photo Quality Ink Jet Paper
  • 600x600dpi - EPSON Precision Dot RGB - Speed
  • 1200x1200dpi - EPSON Precision Dot RGB - Quality

Enhanced Synthetic Paper
  • 600x600dpi - EPSON Precision Dot RGB - Speed
  • 600x600dpi - EPSON Precision Dot RGB (GIS) - Speed
  • 1200x1200dpi - EPSON Precision Dot RGB - Quality
  • 1200x1200dpi - EPSON Precision Dot RGB (GIS) - Quality

Enhanced Adhesive Synthetic Paper
  • 600x600dpi - EPSON Precision Dot RGB - Speed
  • 1200x1200dpi - EPSON Precision Dot RGB - Quality

Enhanced Low Adhesive Synthetic Paper
  • 600x600dpi - EPSON Precision Dot RGB - Speed
  • 1200x1200dpi - EPSON Precision Dot RGB - Quality

Heavy Weight Polyester Banner
  • 600x600dpi - EPSON Precision Dot RGB - Speed
  • 1200x1200dpi - EPSON Precision Dot RGB - Quality

Enhanced Matte Poster Board
  • 1200x1200dpi - EPSON Precision Dot RGB - Quality
  • 2400x1200dpi - EPSON Precision Dot RGB - High Quality
  • 2400x1200dpi - EPSON Precision Dot RGB - Maximum Quality

Blacklight Film Roll
  • 2400x1200dpi - EPSON Precision Dot RGB - High Quality
  • 2400x1200dpi - EPSON Precision Dot RGB - Maximum Quality



Action

Available actions are:

  • Print: This action rips and prints the file simultaneously.
  • RIP: Rips the file and holds it in the Spooler.
  • RIP then Print: Rips the entire file, and then sends the file to print.
  • Nest: This action nests all images sent to the printer and holds them in the Spooler.

Keep Ripped file (only available with "Print" and "Rip then Print" actions). When this box is checked, the sent file remains in the Spooler so you can reprint the job later on.

Was this article helpful?
0 out of 0 found this helpful
