You can find the general settings of the software in the Settings menu.

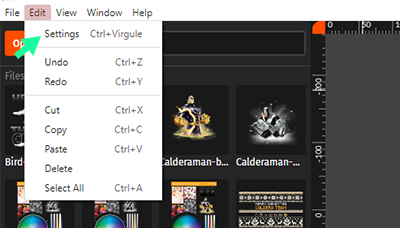

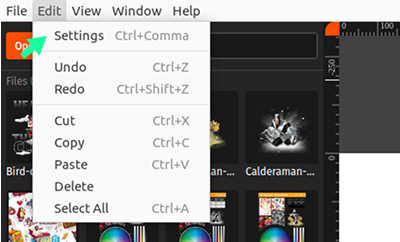

Go to Edit > Settings.

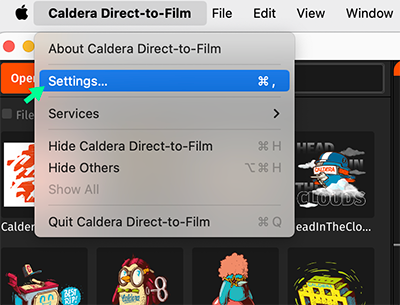

Go to Caldera Direct-to-X > Settings.
Go to Edit > Settings.

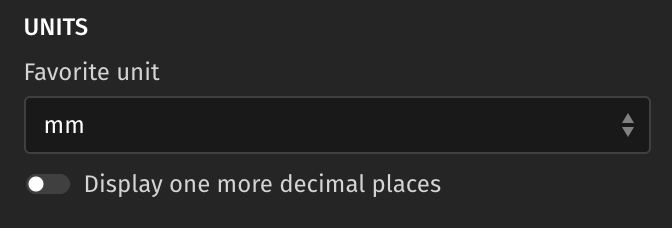

Units
You can set your favorite units used throughout the software. Select one of the following options to match your working preferences:
|
|
Decimal place
You can also choose to display an additional decimal place for units using the corresponding toggle. The number of decimals varies depending on the unit selected:
| Unit | Normal | Option enabled |
| mm | 0 | 1 |
| cm | 1 | 2 |
| m | 3 | 4 |
| in | 3 | 4 |
| ft | 4 | 5 |

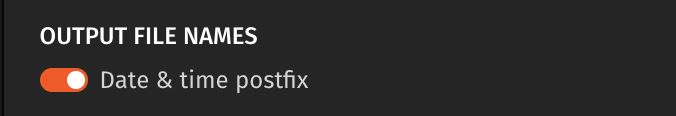

Output File Names
Use the Date and Time Postfix toggle to control whether the current date and time are appended to generated output file names.
- On: A timestamp is added to the file name, which helps differentiate files created at different times and prevents overwriting existing files.
- Off: Files are saved using the base file name without any date or time suffix.

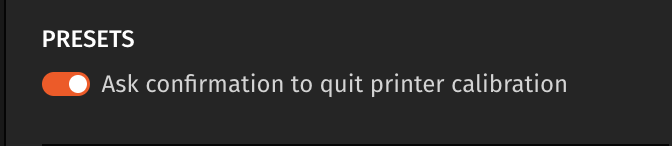

Presets
When enabled, this toggle prompts a confirmation dialog before leaving the calibration process. This helps prevent exiting by mistake and leaving the printer calibration incomplete.

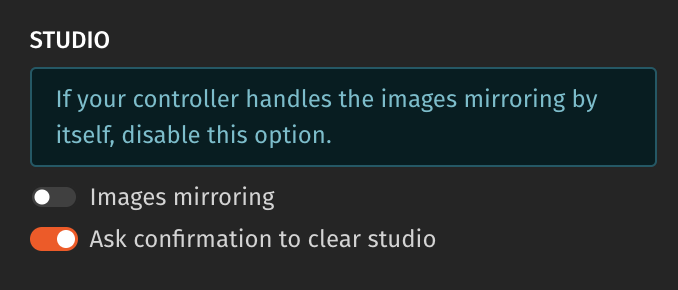

Studio
The Studio settings consist of two toggles:
- Images mirroring (DTF Only): As noted in the software, if your printer controller already handles image mirroring, it is recommended to leave this option disabled.
- Ask confirmation to clear studio: Enables or disables the confirmation dialog that appears when you attempt to Clear the Studio, which deletes all images within it.

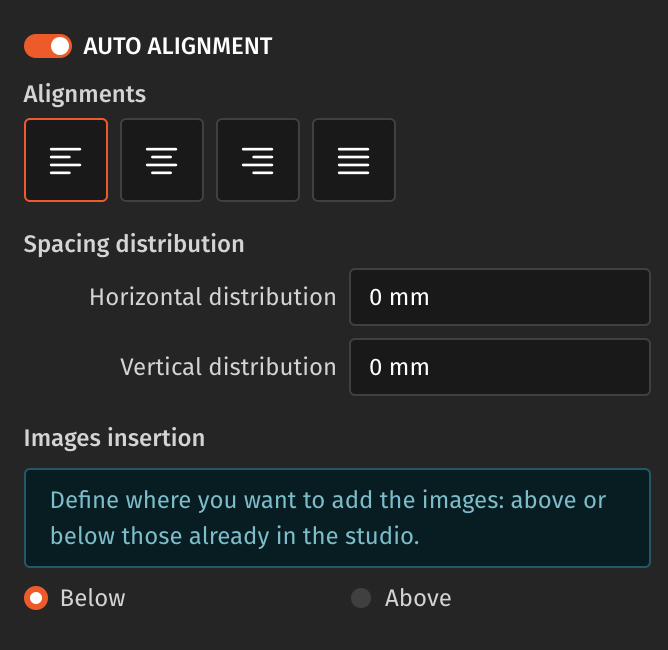

Auto Alignment
Available in Caldera Direct-To-Film RIP.
When enabling this feature, a whole set of options appears. Learn more.

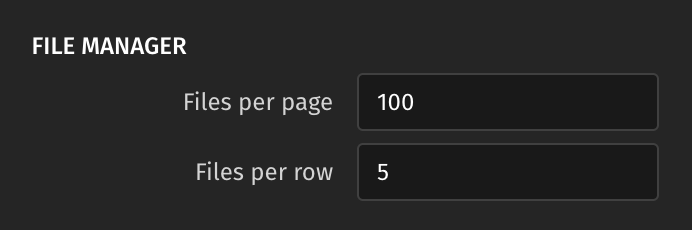

File Manager
In addition to changing the view type directly from the File Manager, you can also define the following options in the Global Settings:
- Files per page: Sets the number of files displayed on each page.
- Files per row: Sets the number of thumbnails displayed per row to make browsing easier.

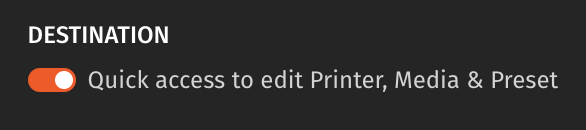

Destination
This toggle enables or disables the gear icons in the Destination module, which provide quick access to device, media, and preset settings directly from that module.

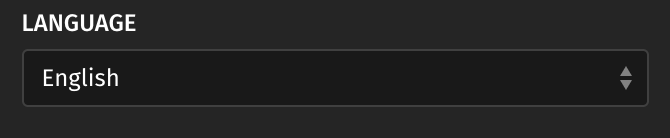

Language
You can change the Language used in the software. Choose one from the following available languages:
|
|
|

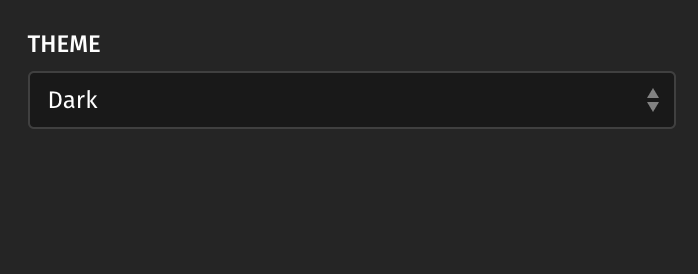

Theme
Choose a Theme based on your preference and visual comfort. At the bottom of the Global Settings, select one of the available options:
| Dark theme | Light theme |
